Water Sampling & Monitoring USV

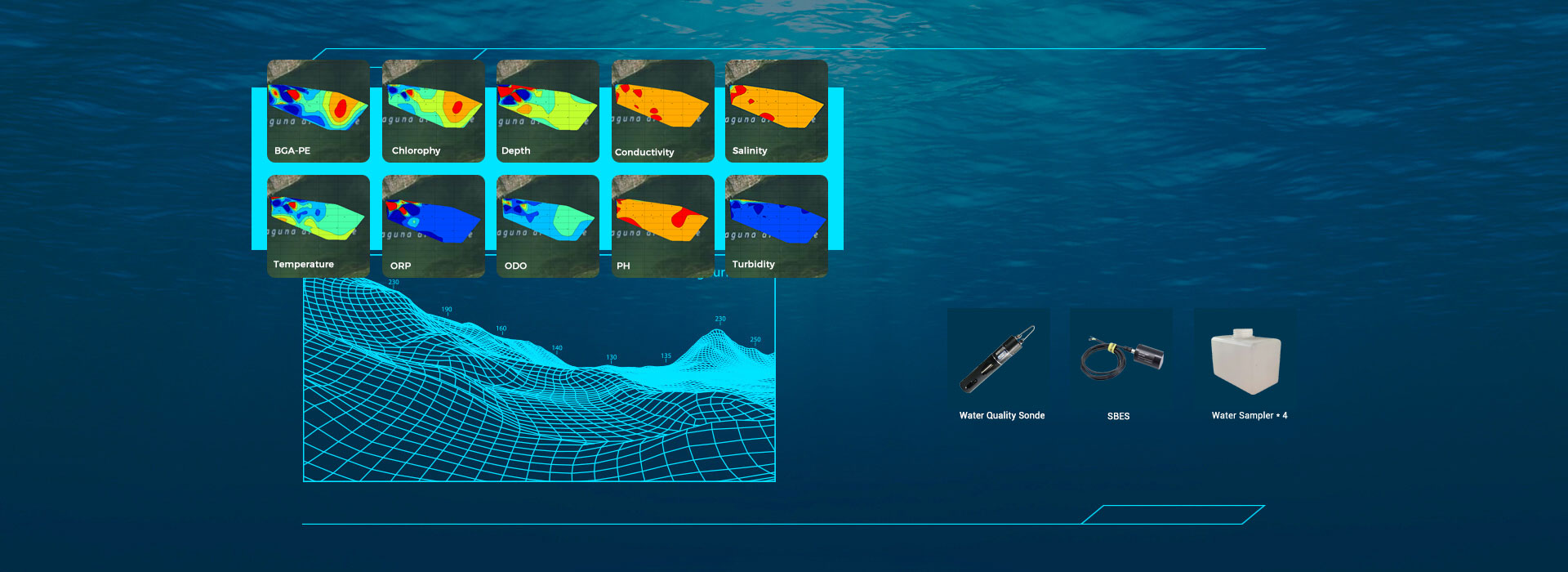

SE40 instrument background SE40 instrument background

Fast Switch Between Missions

It can carry multi instruments such as water probes for water quality monitoring, echo sounder for bathymetry survey, and ADCP for river discharge measurement.

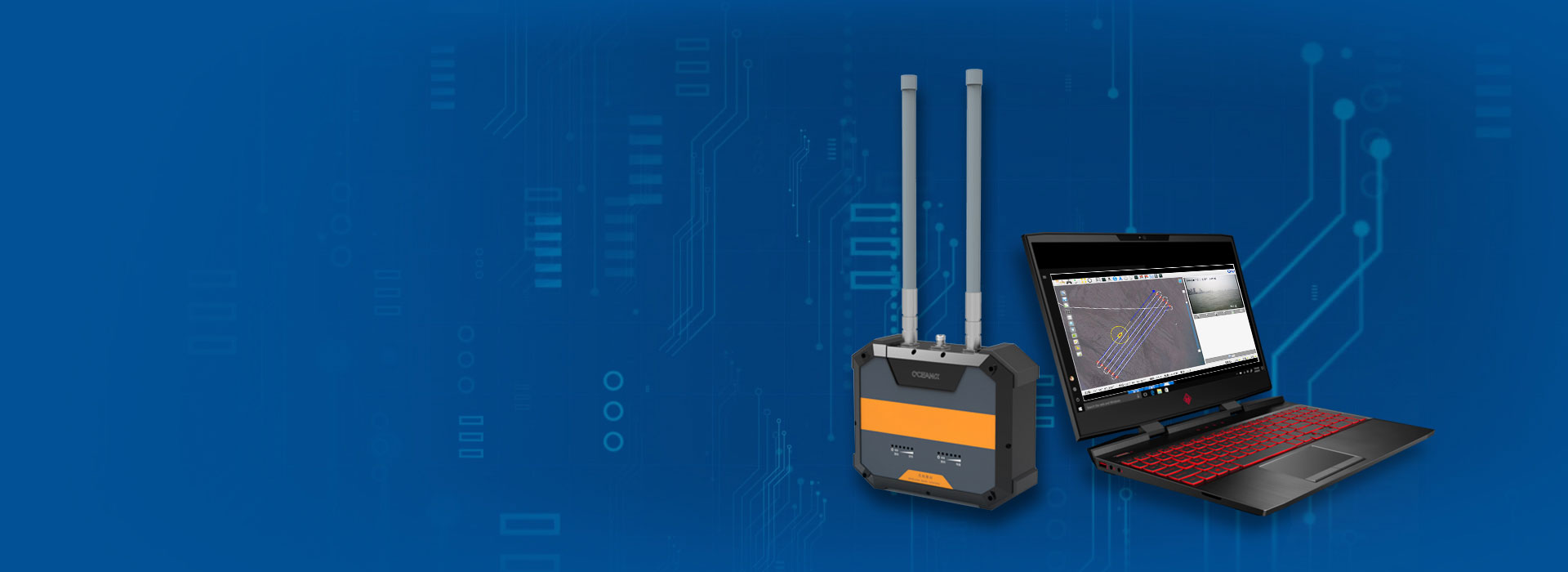

base station base station

Automatic mission planning

You can pre-program the sampling and monitoring mission with just a few drags and clicks on the base station computer. SE40 carrying instruments can conduct sampling and monitoring autonomously and send back real-time data.

You can also drive SE40 by a remote controller to reach some difficult corners.

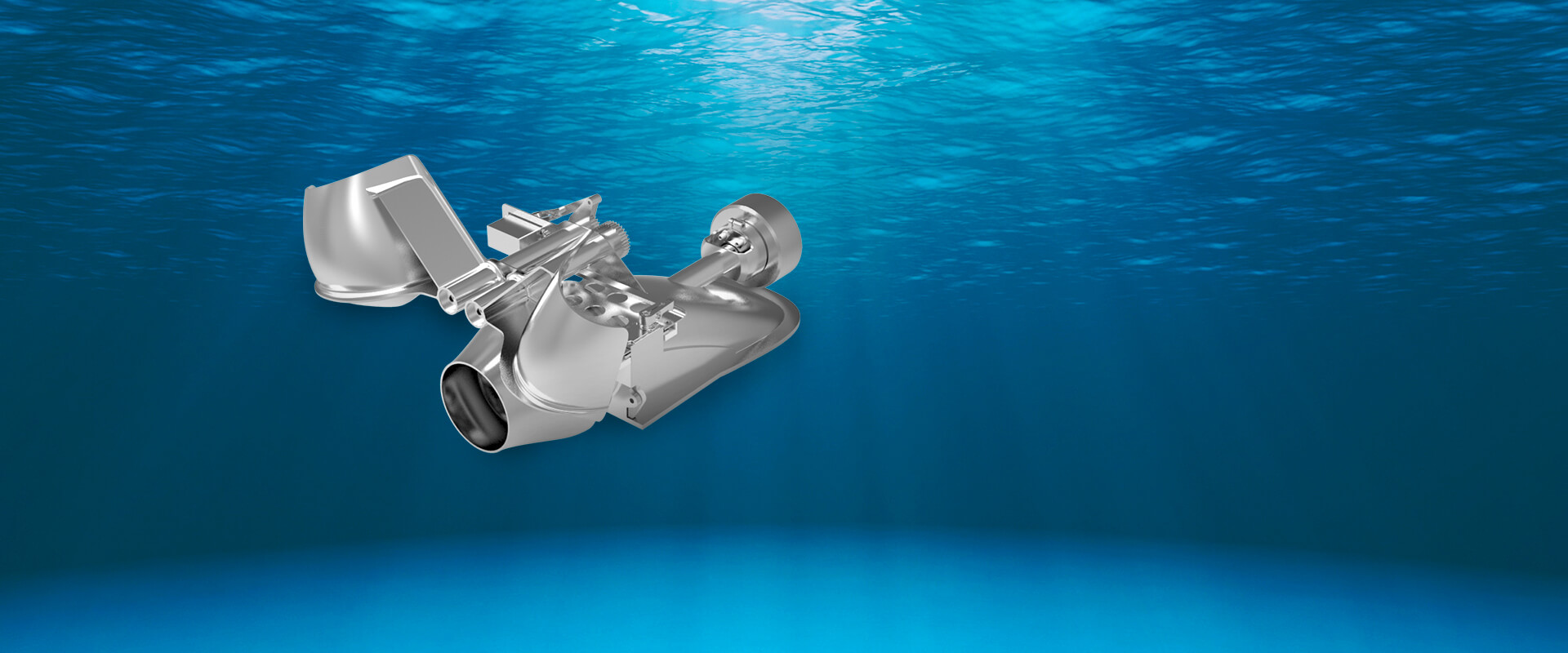

SL40 05 speed SL40 05 speed

Higher speed & tangling free

The innovative water jet thruster brings SE40 USV to a top speed 5m/s and effectively avoid being entangled by water plants or debris.

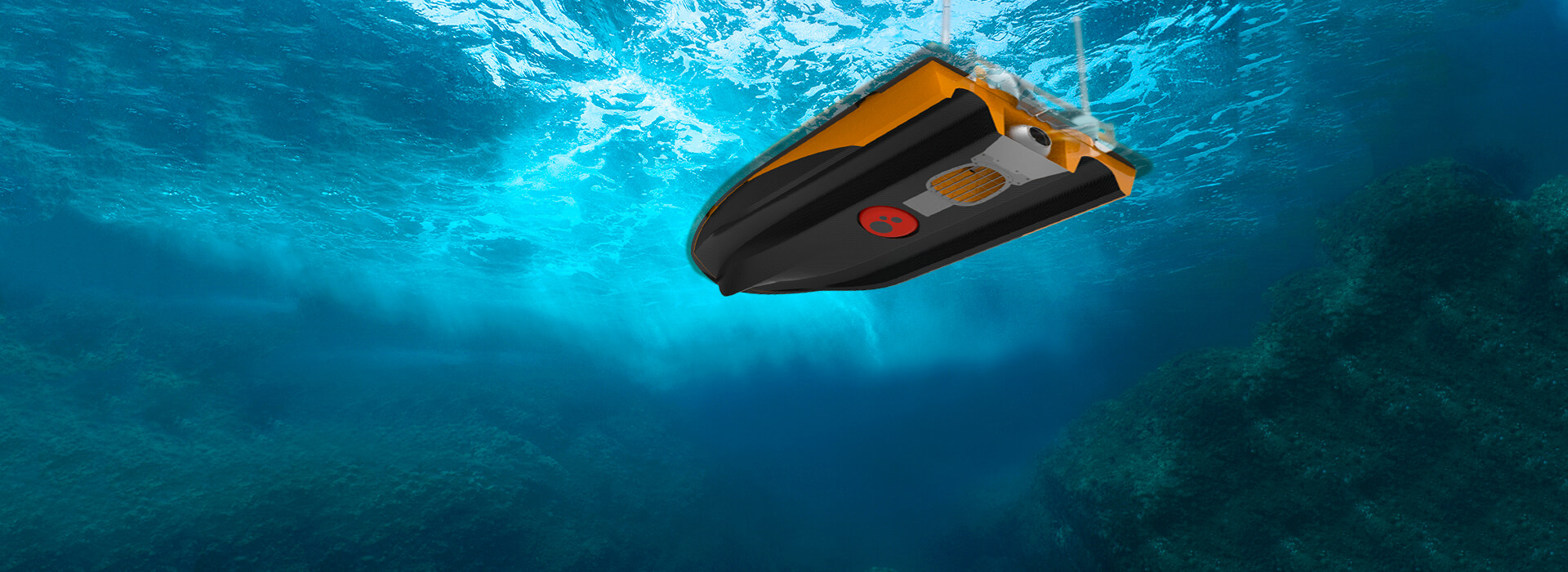

SL40Y 05 sailing SL40Y 05 sailing

Stable sailing

The trimaran hull design dramatically improves stability when sailing at high speed.

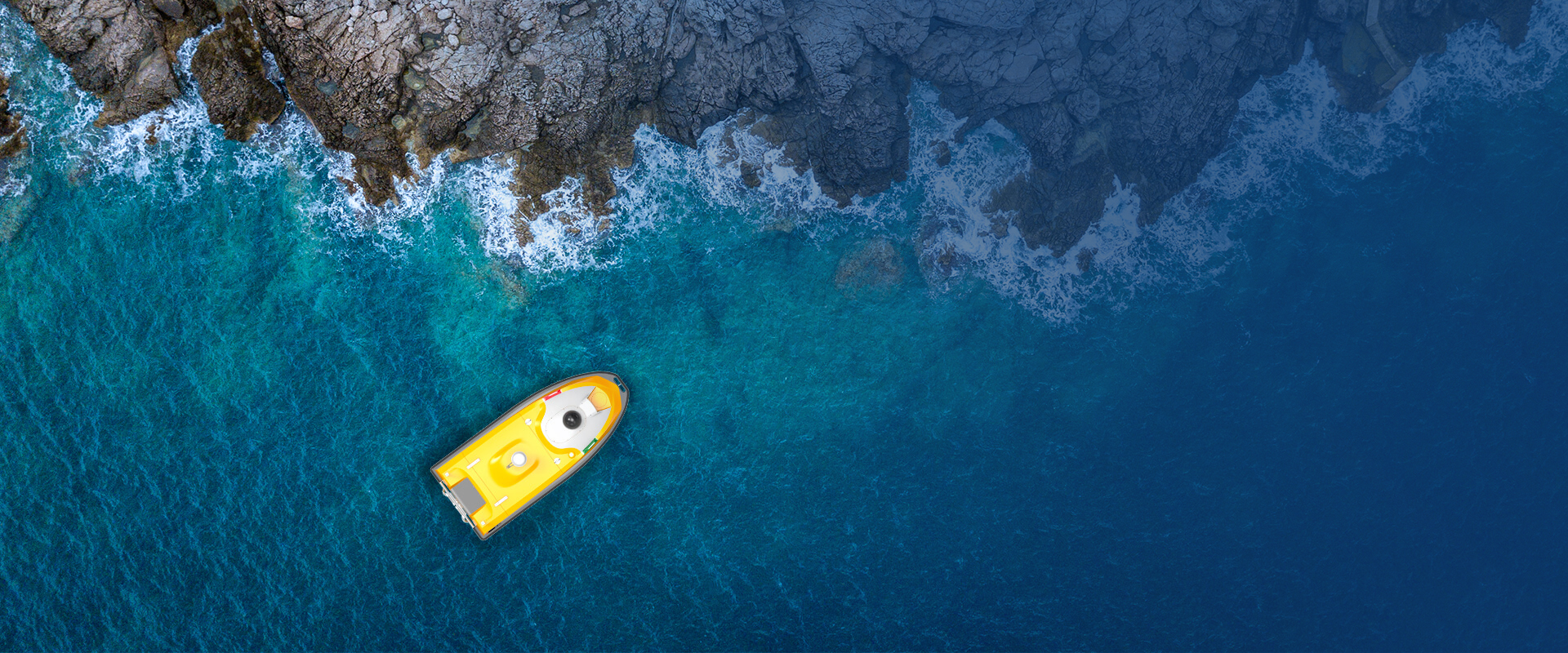

SL40 collision avoidance SL40 collision avoidance

Intelligent collision avoidance

Equipped with radar sensors, SE40 USV can detect obstacles and avoid collision within 50 meters.

In manual mode, you can observe the water environment via real-time video to improve navigation safety.


Hull Material Carbon fiber
Dimension (L)165 cm *(W)70 cm
Weight 44 kg(with batteries)
Payload 25 kg
Draft 15 cm
Propulsion Electric water-jet propeller
Communication Range Data telemetry: 2 km    Remote Control: 1 km
Max. Speed  10 knots (5 m/s)
Battery Life 8 hrs @ 3kn


Application Case

  • 01 1
    OceanAlpha USV supports water quality monitoring in Orbetello lagoon
  • SL40 1 去国旗 1 scaled

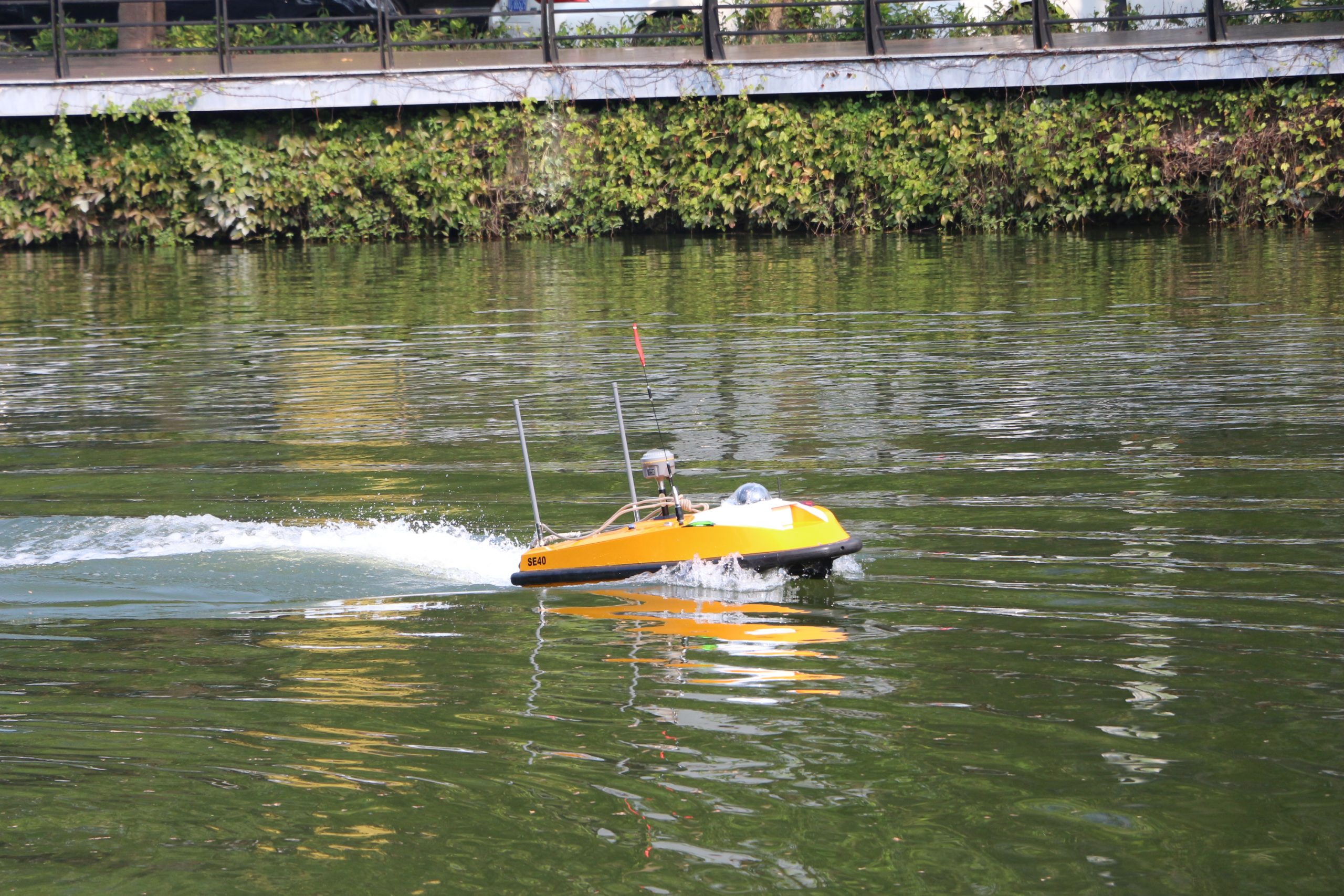

  • SE40 实景图02 scaled

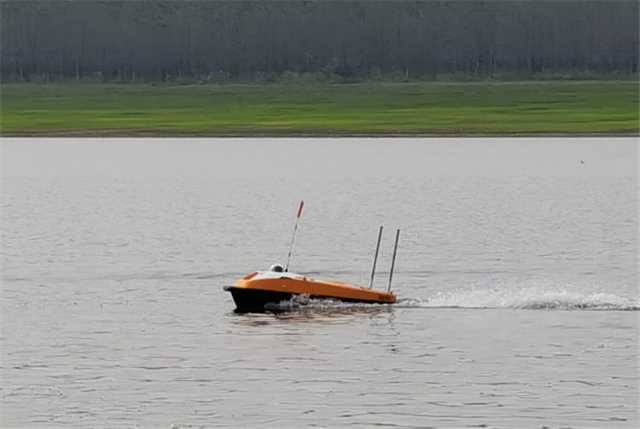

  • SE40 1

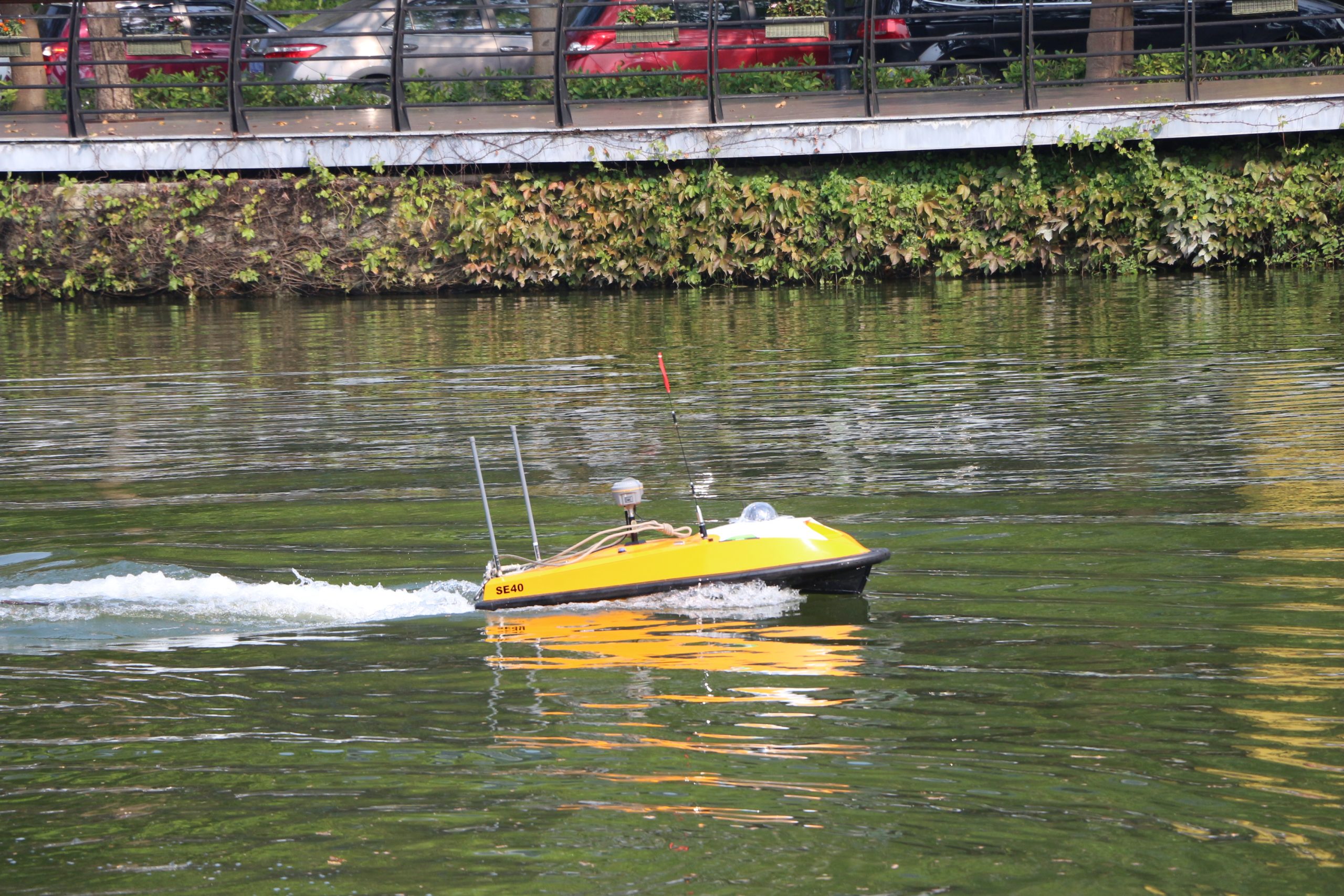

  • SE40 实景图01 scaled

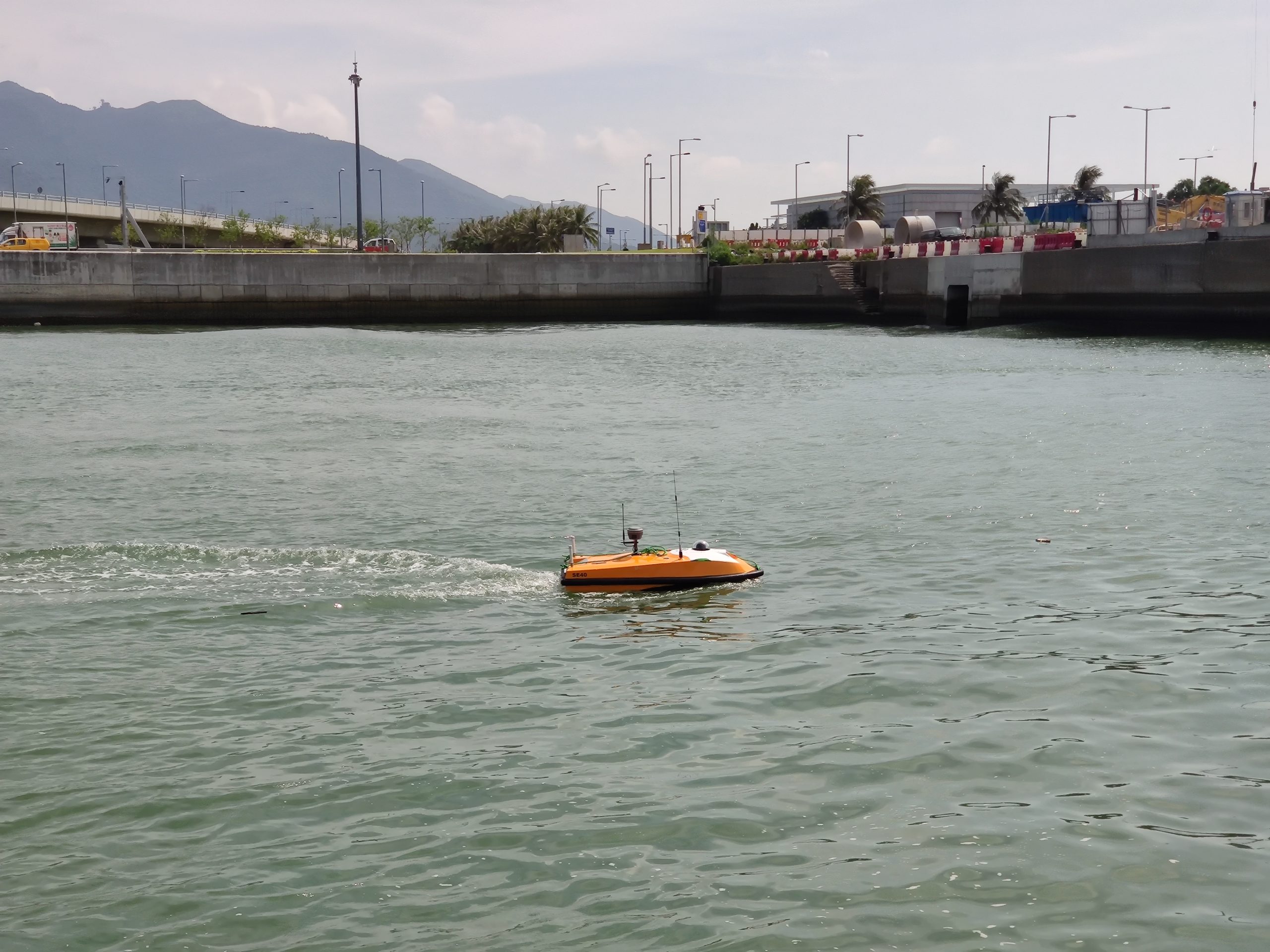

  • SE40 香港机场 scaled

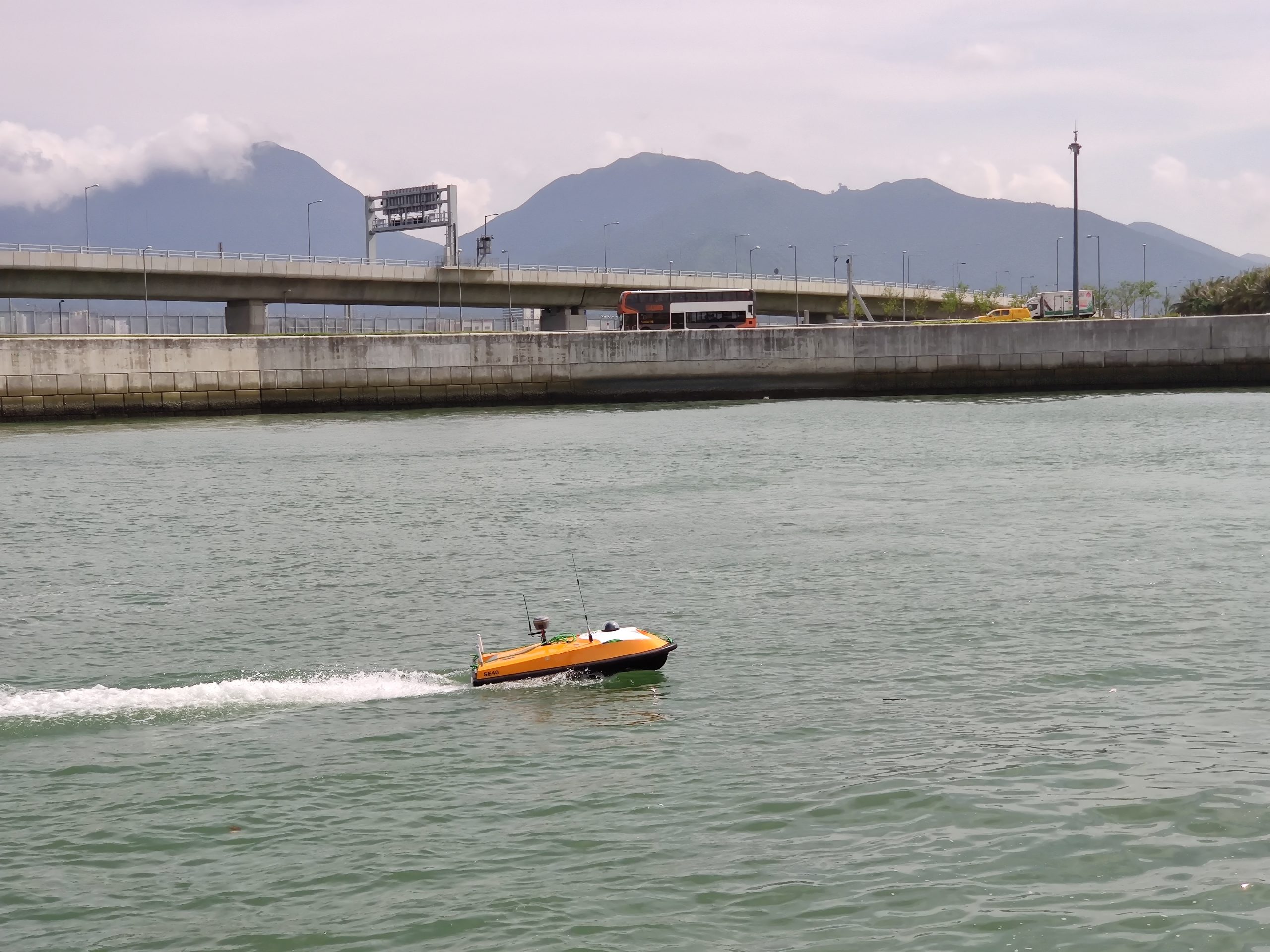

  • SE40 香港机场2 scaled

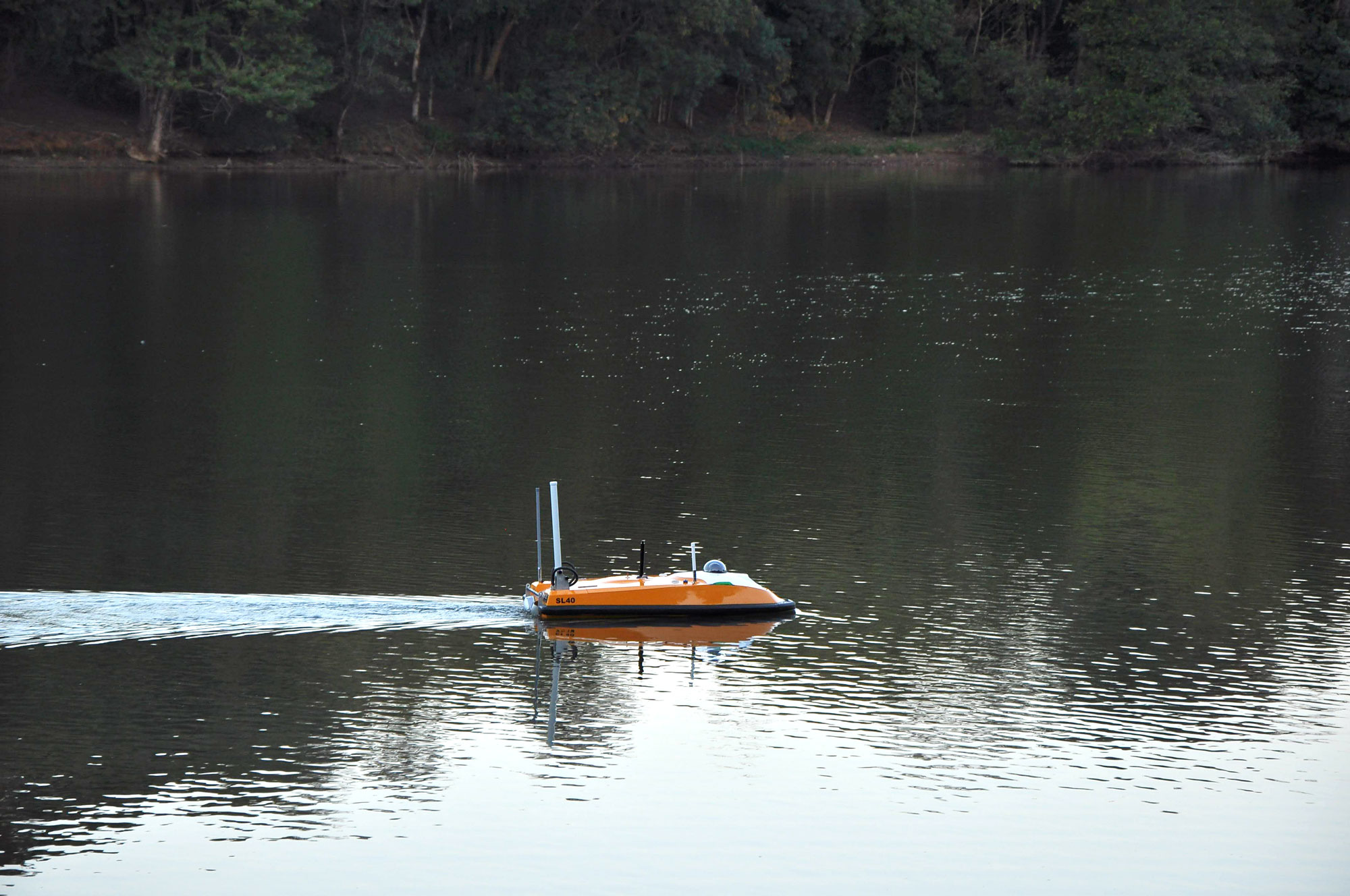

  • 巴西 SE40 Clean
