SS20 | Unmanned Surface Vehicle丨OceanAlpha
Ss20 02

Remote controlled water sampling boat

One-man-operated & single point water sampling solution

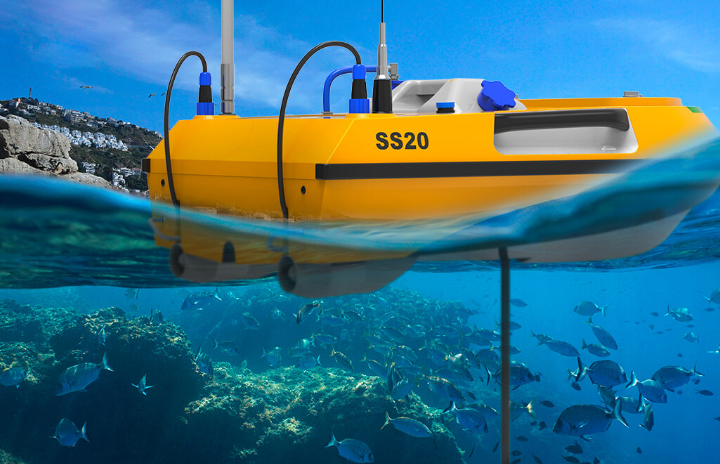

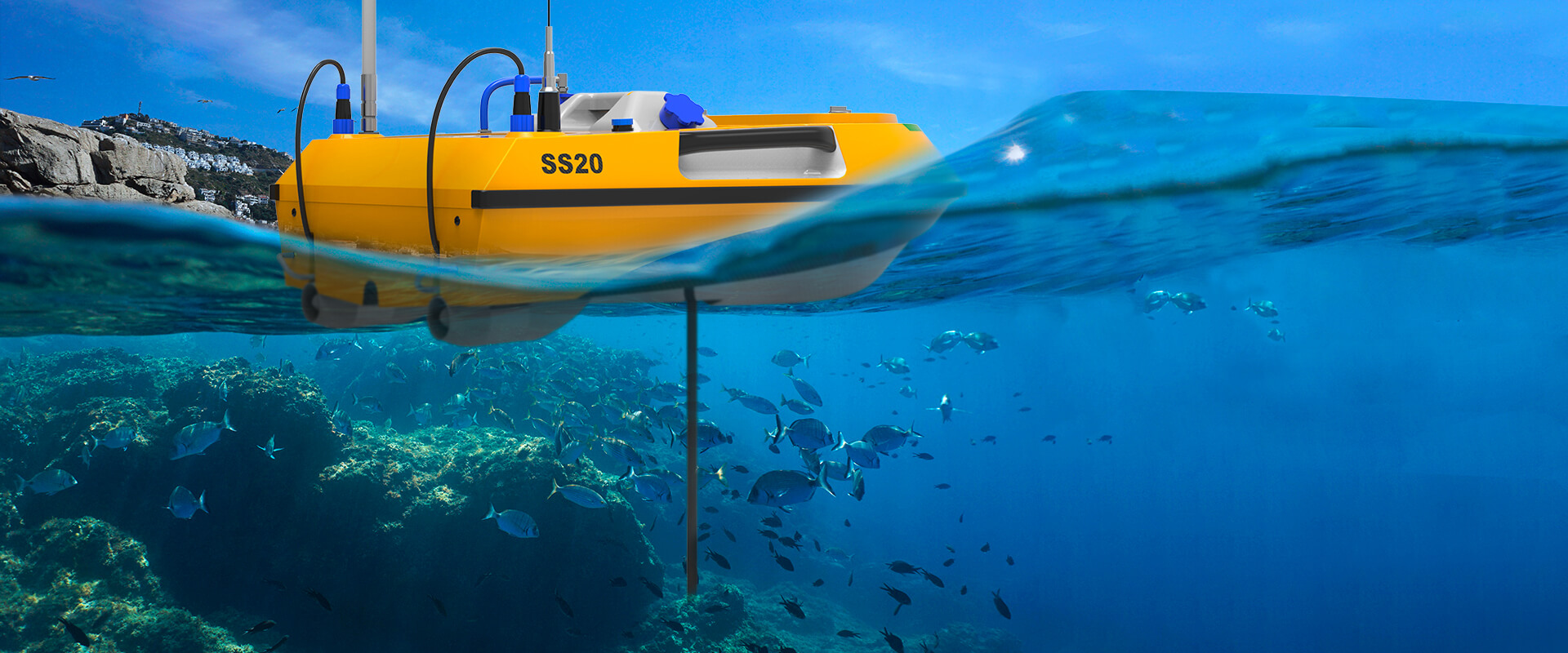

SS20Y 04 sailing 4 e1553845362360

Dedicated to one-spot water sampling

The USV can collect 10L water samples from one spot 0.5m under the water’s surface.

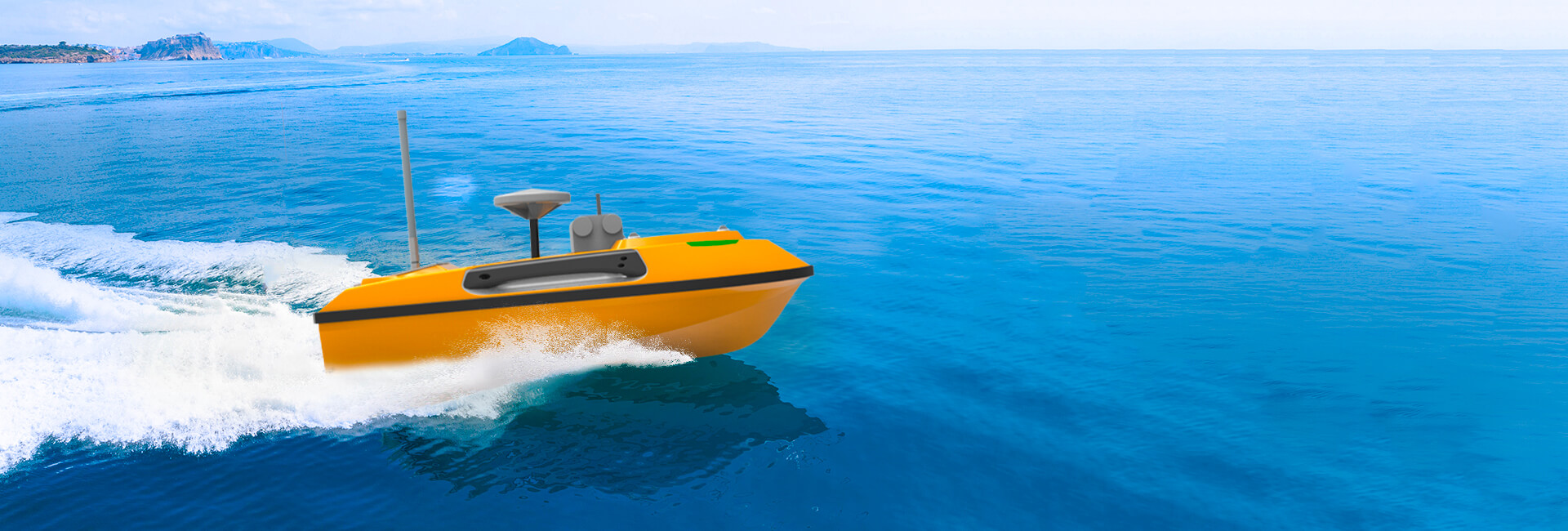

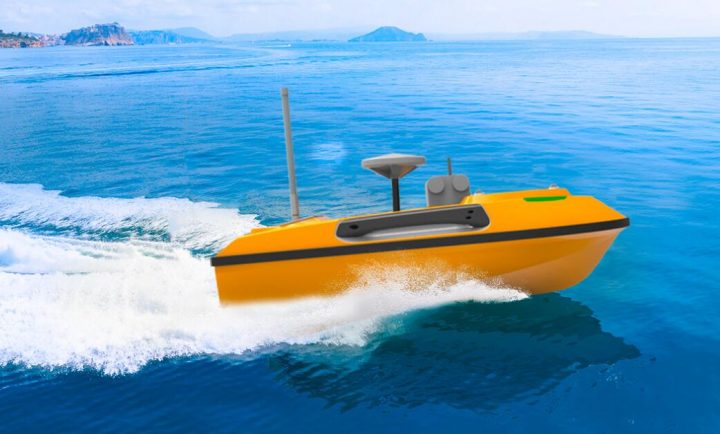

SL20Y 06 speed  e1553840009168

High speed and tangle free

The innovative propeller system allows the USV to sail at a speed up to 5m/s and to avoid being entangled with water plants and rubbish.

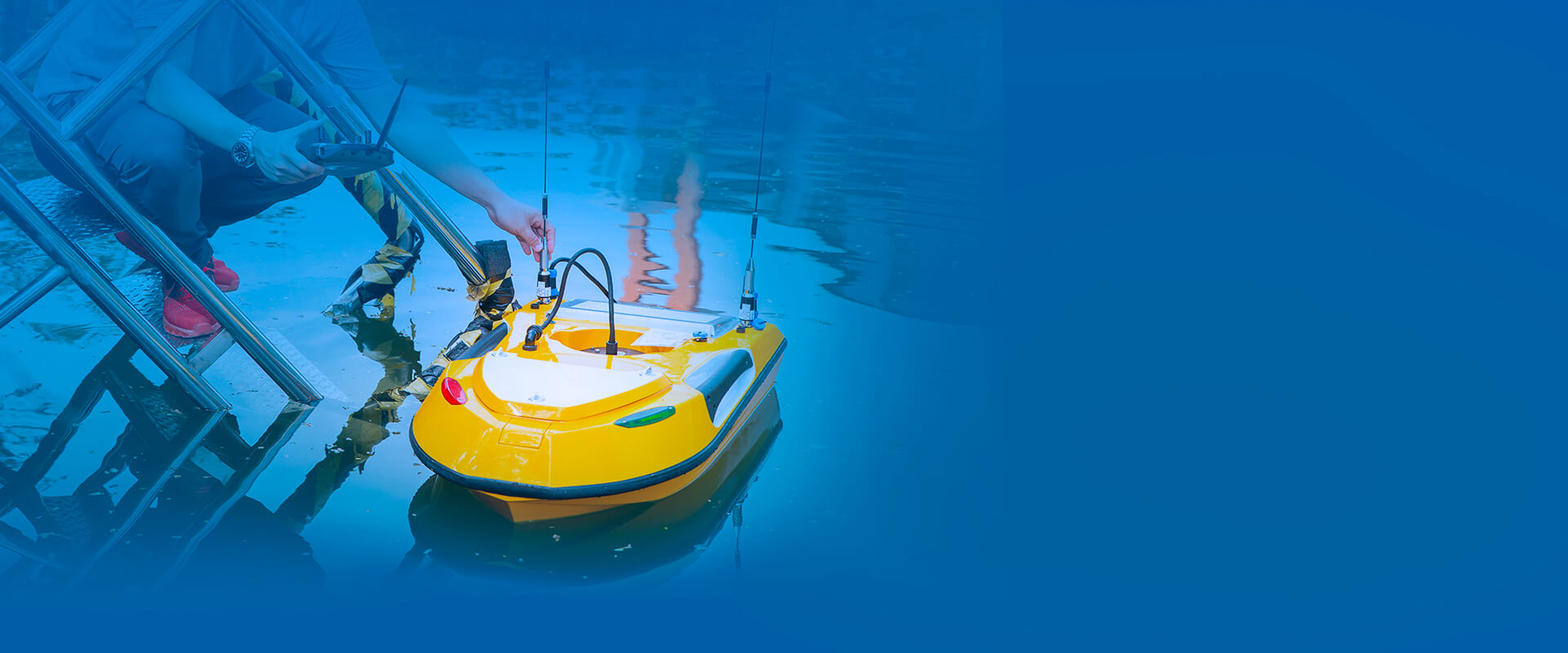

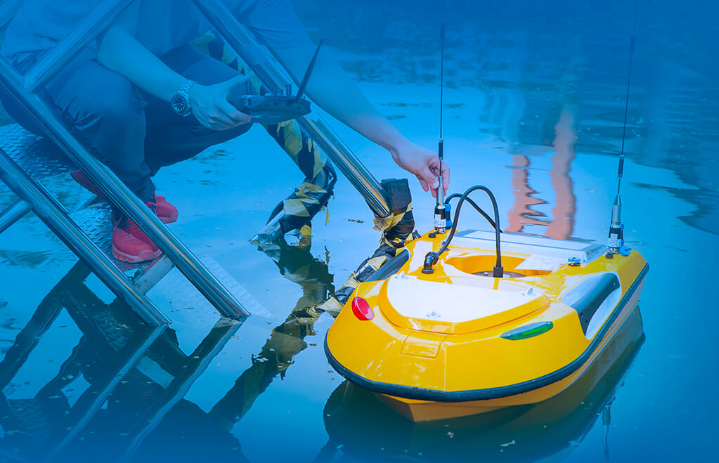

SS20Y 02 planning 5 1 e1553845510151

Flexible operation with remote controller

The USV is operated by remote controller so that the operator can enjoy higher levels of flexibility and safety in harsh working environments.

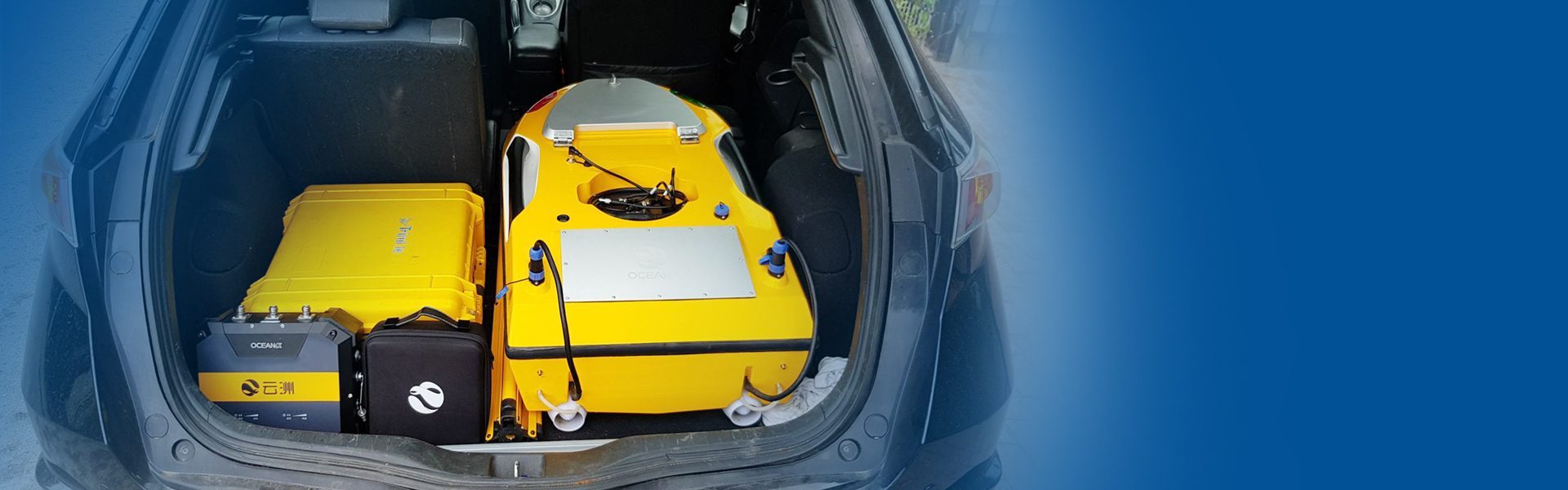

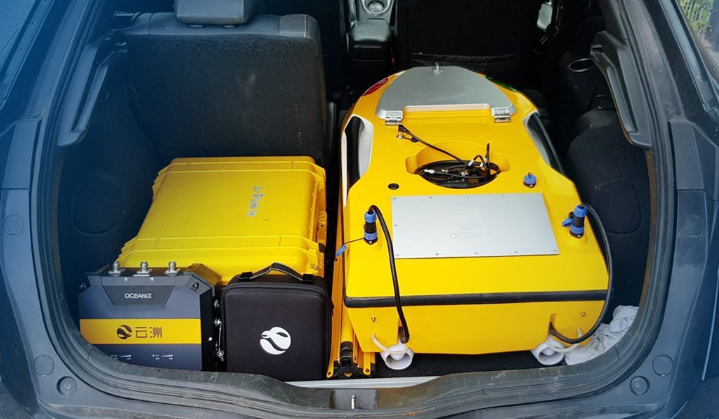

SL20 in back trunk e1552276170433 6 e1553845627115

Compact and portable

This USV only weighs 15kg and is 105cm long, so it can be carried by one person and transported in the trunk of a car.

Specification

Hull MaterialCarbon fiber
Dimension(L)105 cm *(W)55 cm
Weight 15 kg
Payload10 kg
Draft15 cm
PropulsionDuct type thruster
Remote Control FrequencyRadio frequency, 900 MHz/ 2.4GHz
Communication Range1 km
Survey Speed4.9 knots (2.5m/s)
Max. Speed7.8 knots (4 m/s)
Battery Life2h @ 2.5m/s or 1h @ 4m/s
Battery Pack1 x 33V 40Ah
Quick Battery Replacement
OptionsADCP telemetry module

Application Case

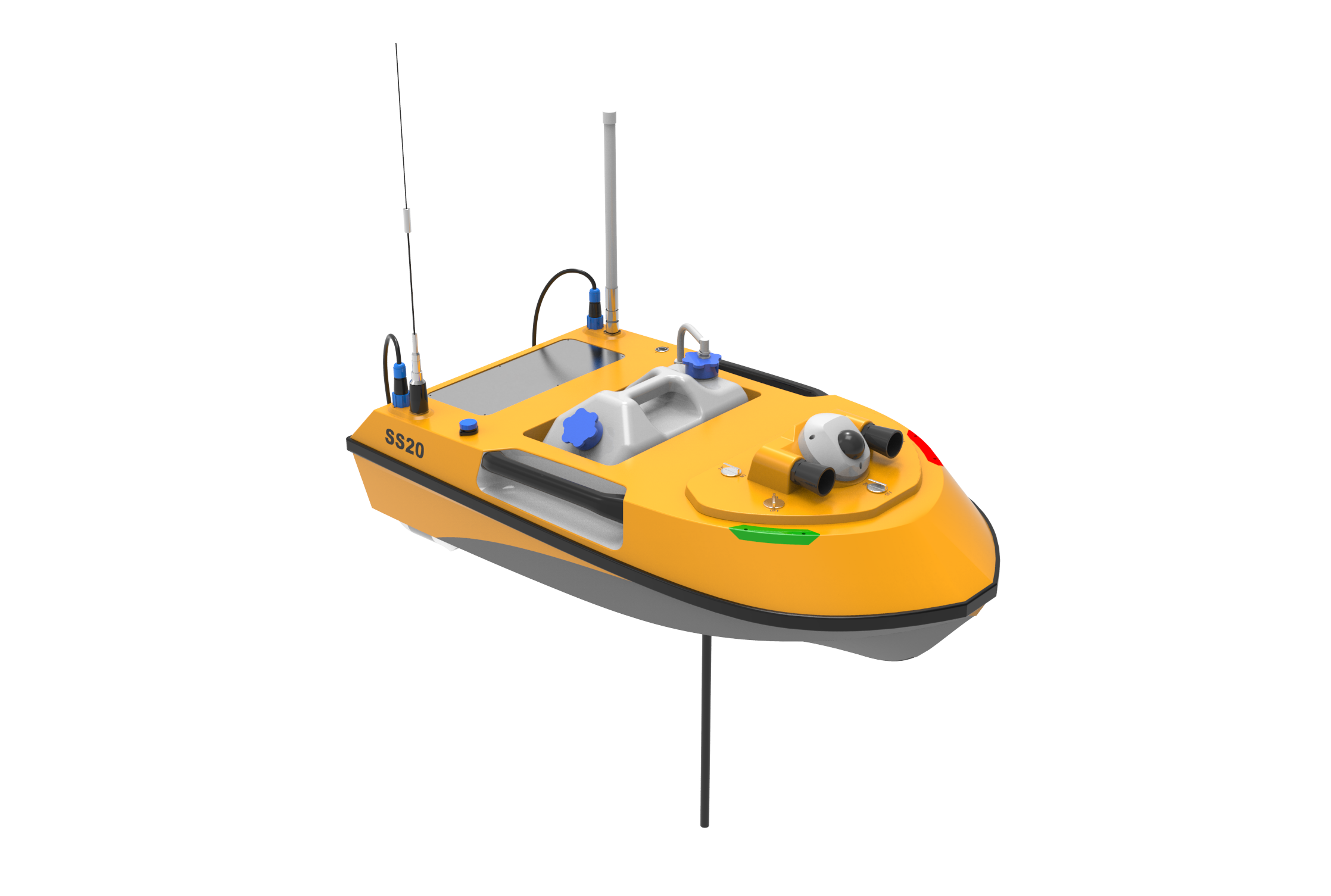

    • SS20超声波.22

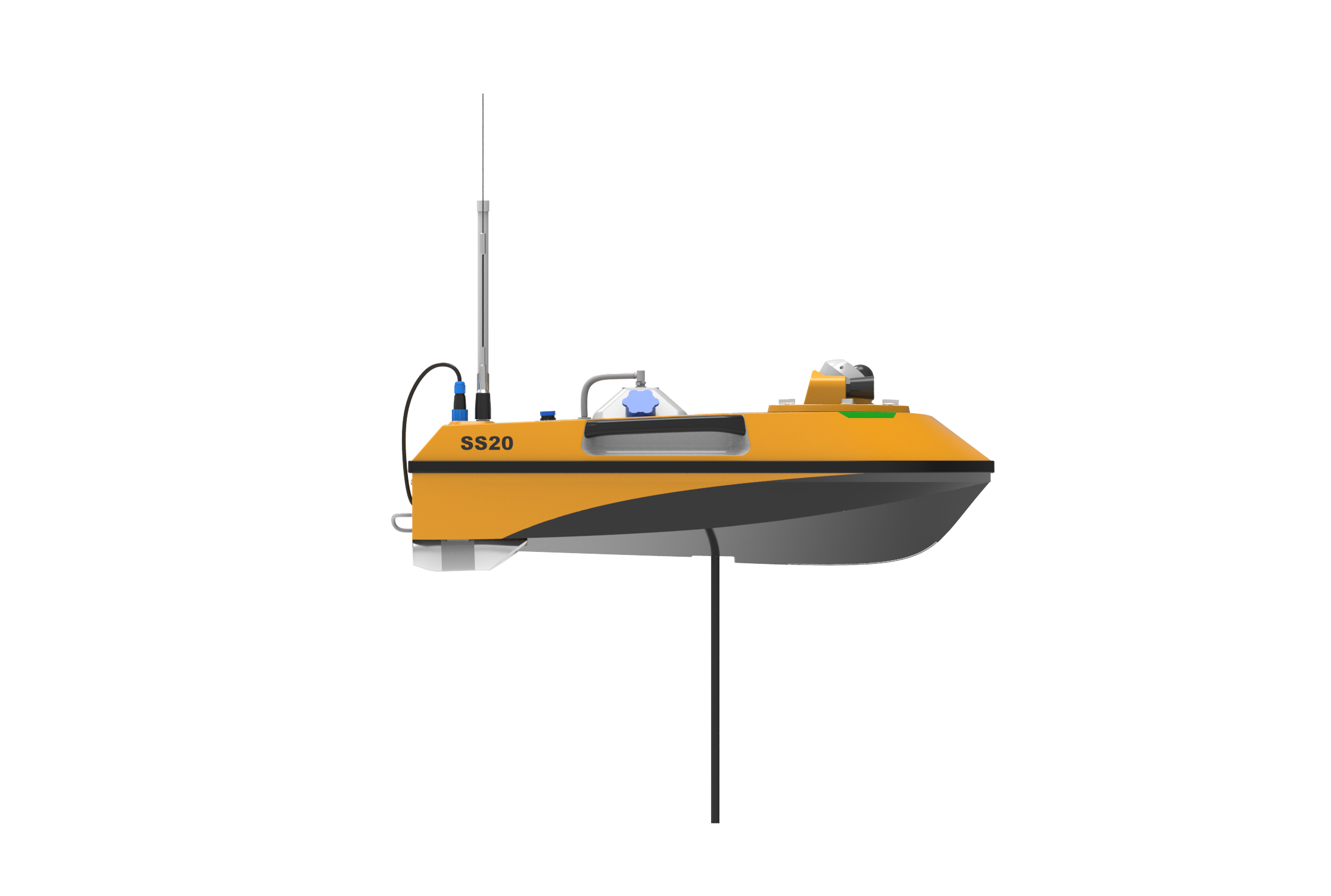

    • SS20超声波.27

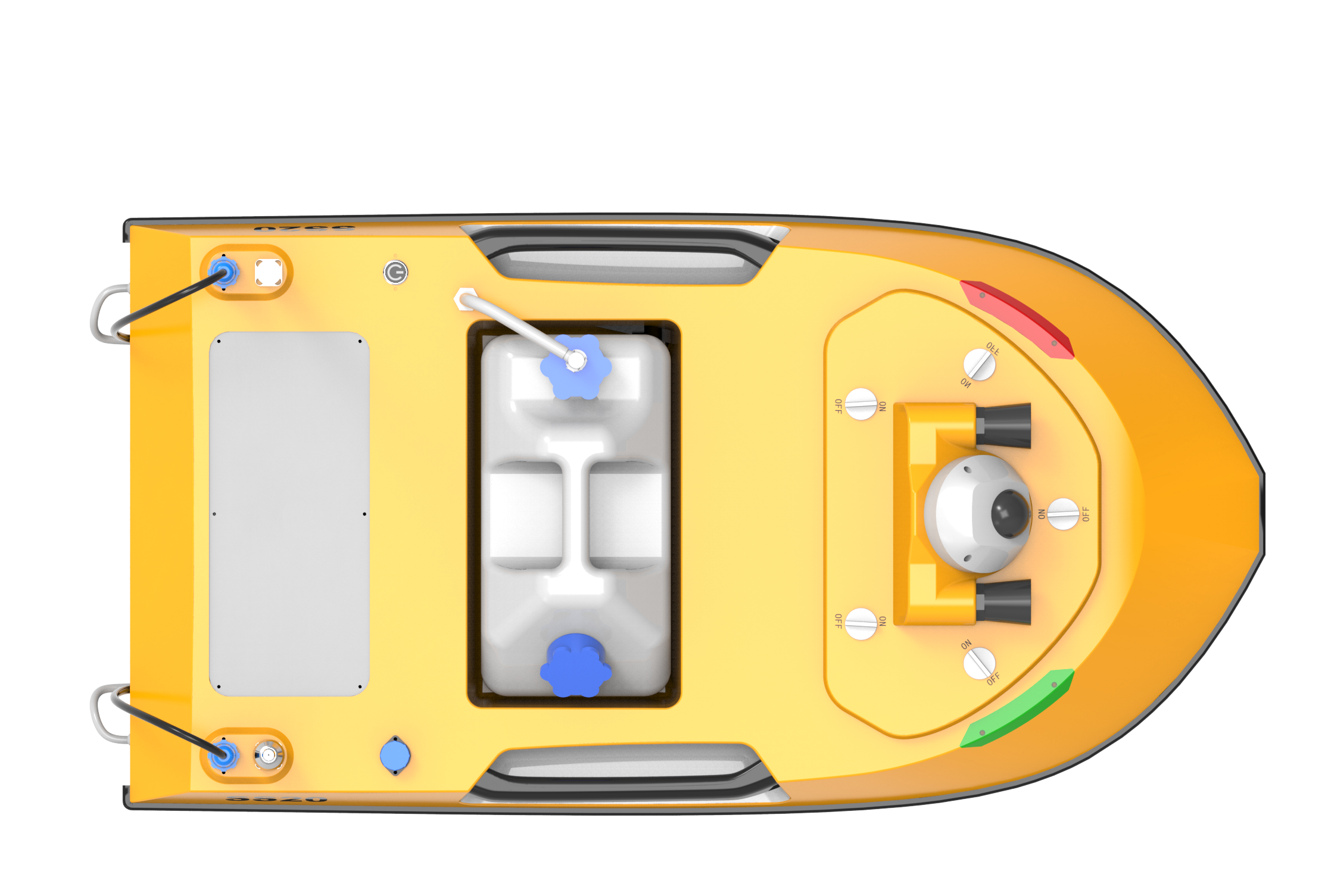

    • SS20超声波.28
