Autonomous Surveillance & Rescue Vessel

for high-speed surveillance with outstanding performance during night shifts

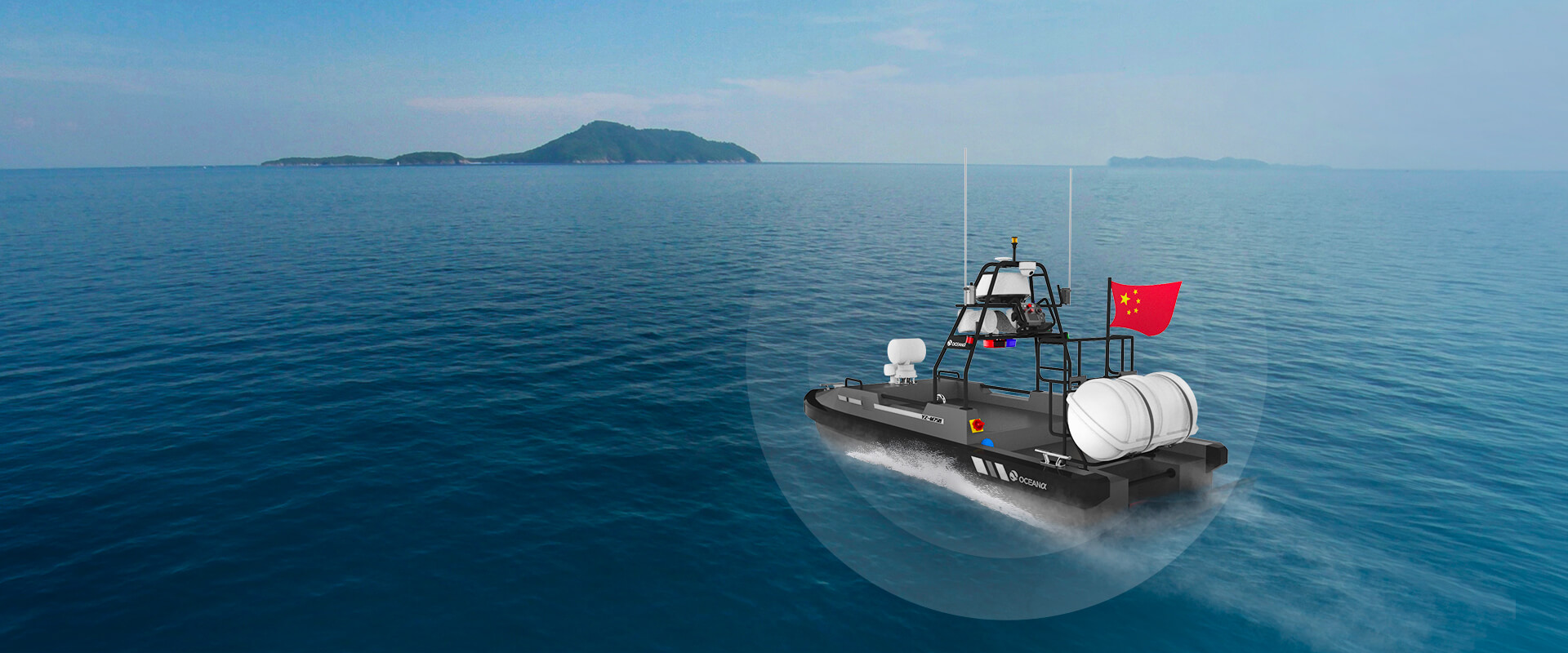

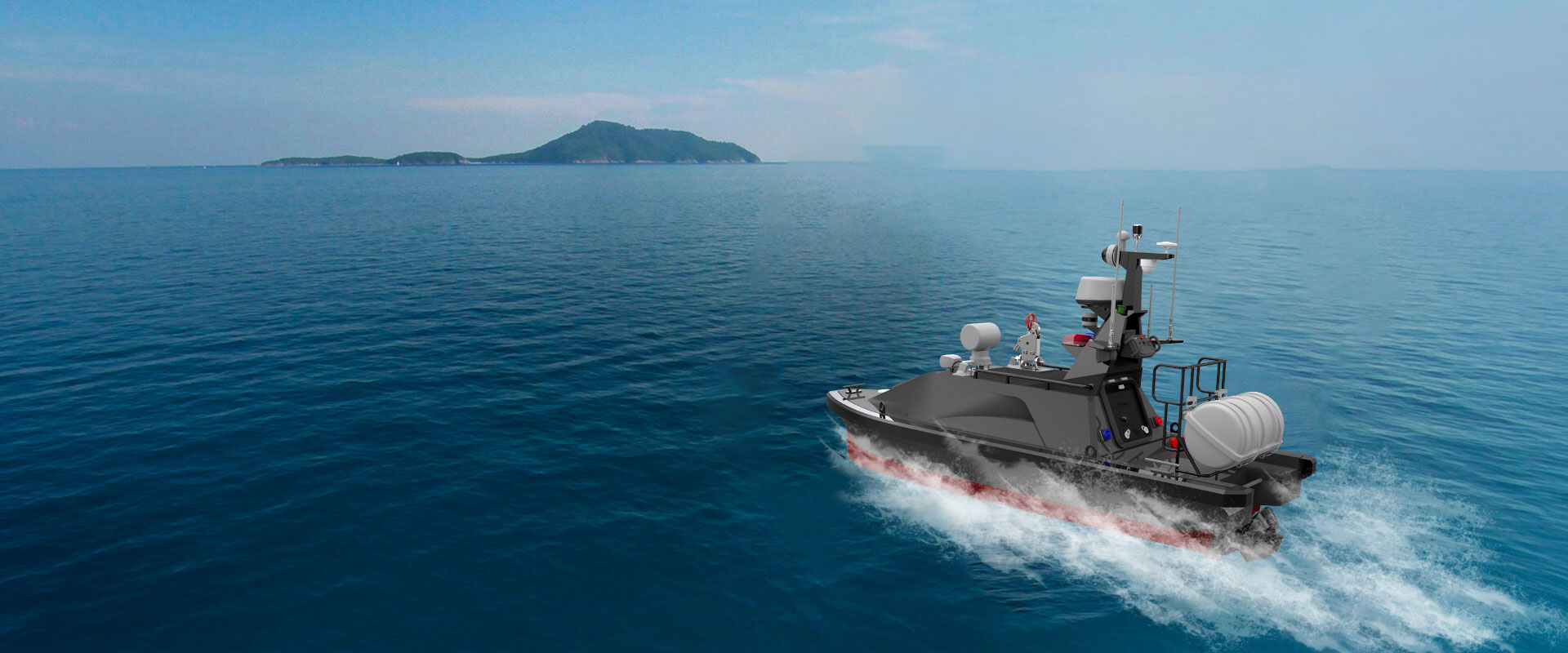

M75 02 ecosounder R image

Dedicated for Surveillance and Rescue

Integrated with comprehensive searching, data, communication and rescue modules, m75 is an ideal smart vessel for maritime surveillance and rescue.

Search Module Information Help Module

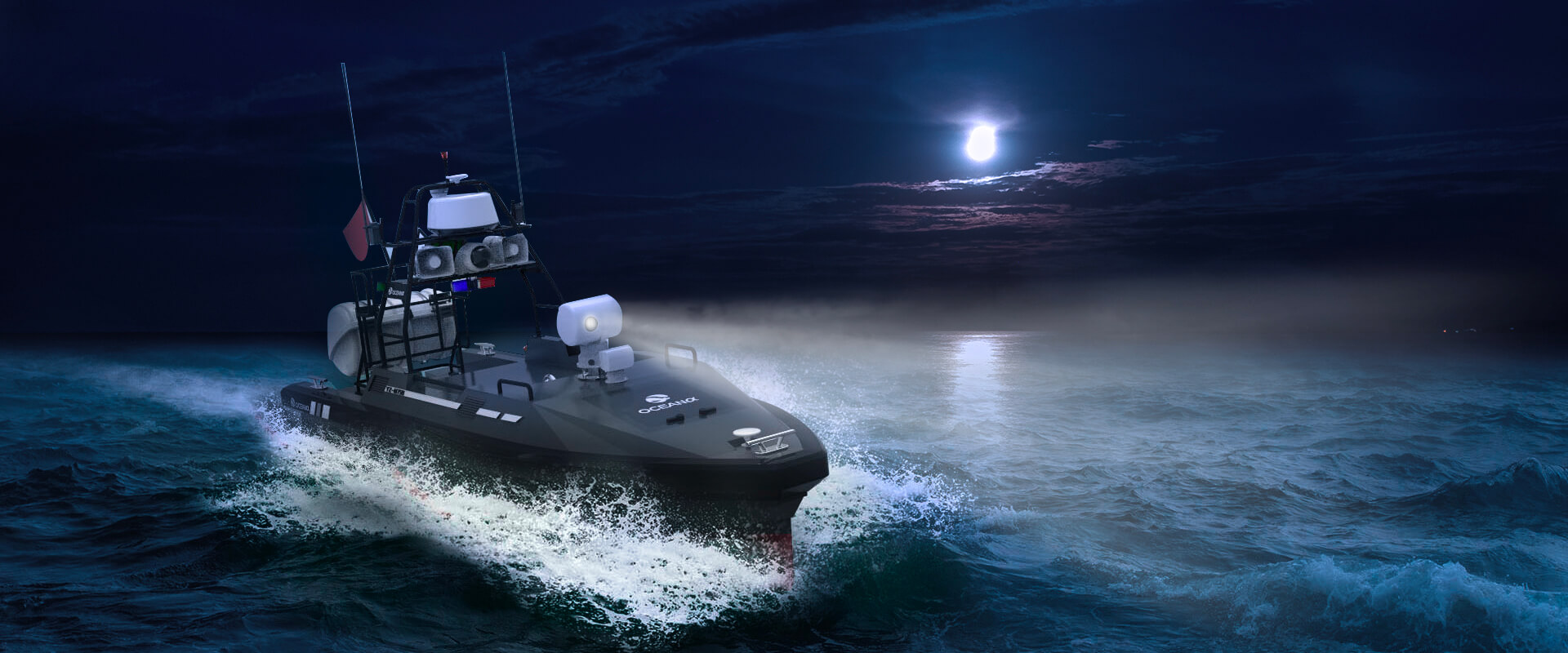

M75 03 performance R image

Outstanding Performance at Night

The photoelectric pod enables M75 to search at night and take high resolution photos for evidence.

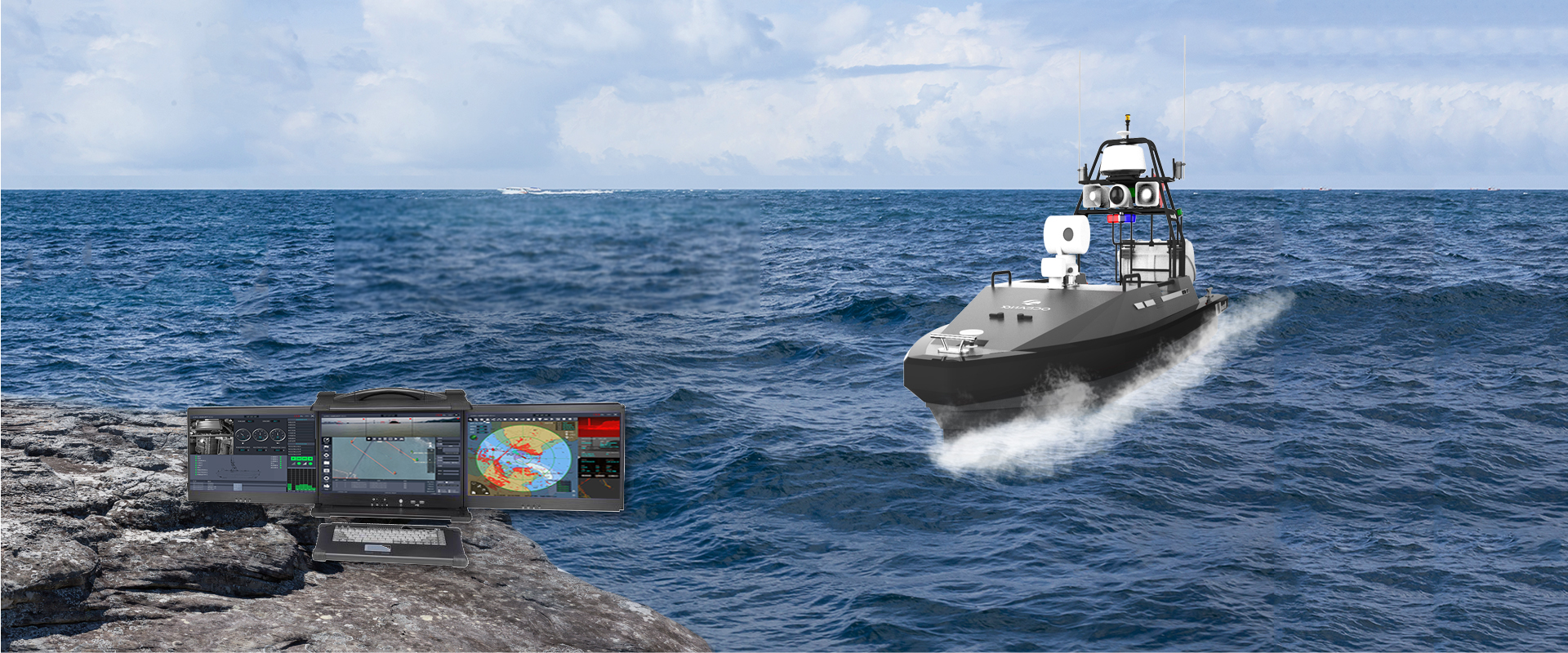

m75lte 1 R image

Ultra Long Communication Distance

Using LTE communication, M75 can communicate with the base station within 15km and send back videos and data in real-time.

M75 05 Equipped image

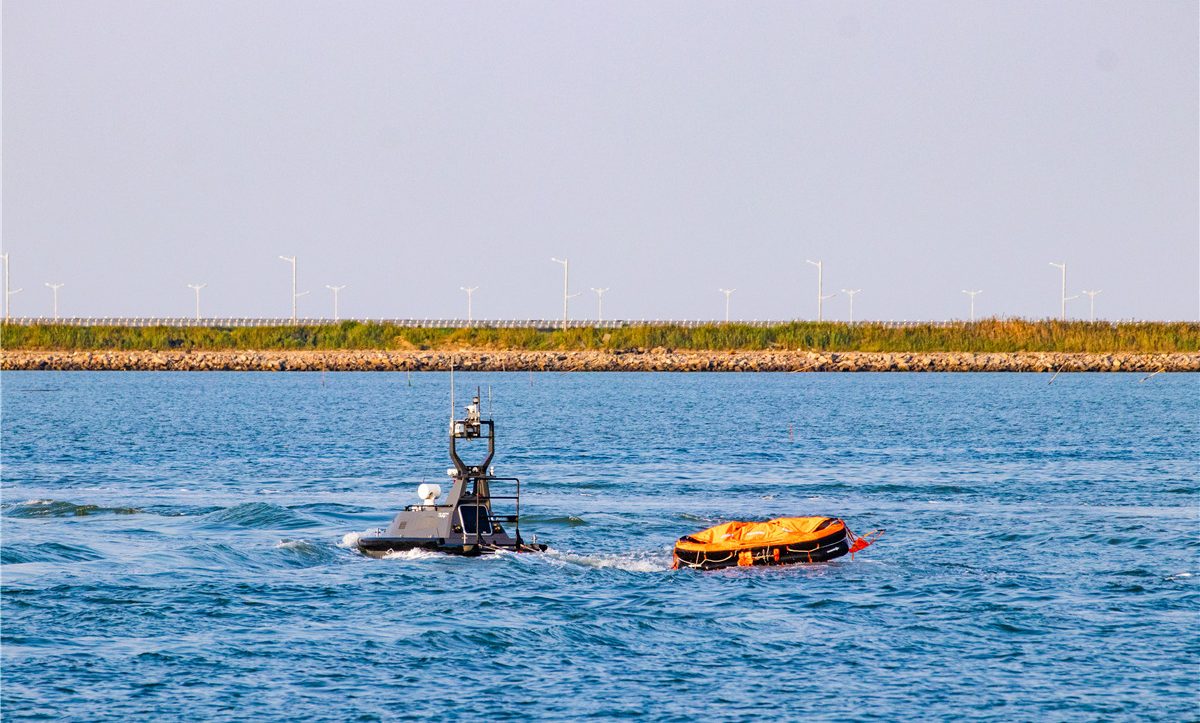

Smart rescue equipment

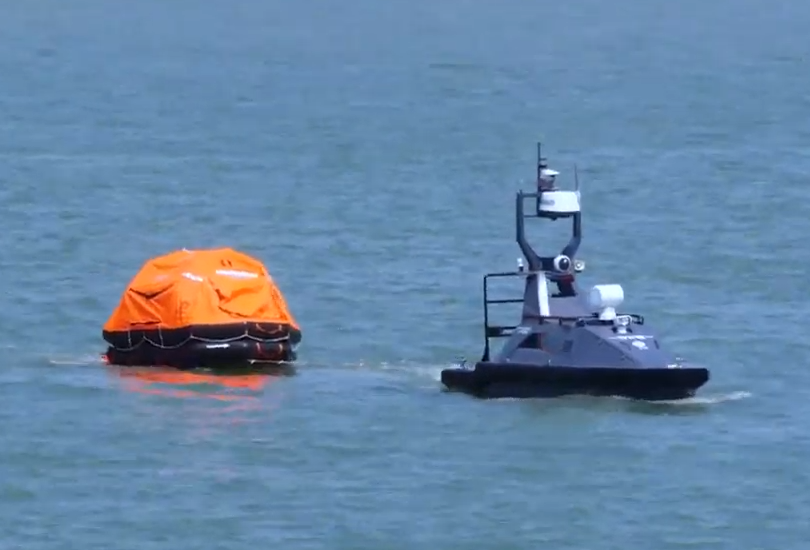

M75 can be deployed with rescue equipment like ejectable life-raft, remote controlled life lifebuoy to conduct rescuing missions in different water environment.

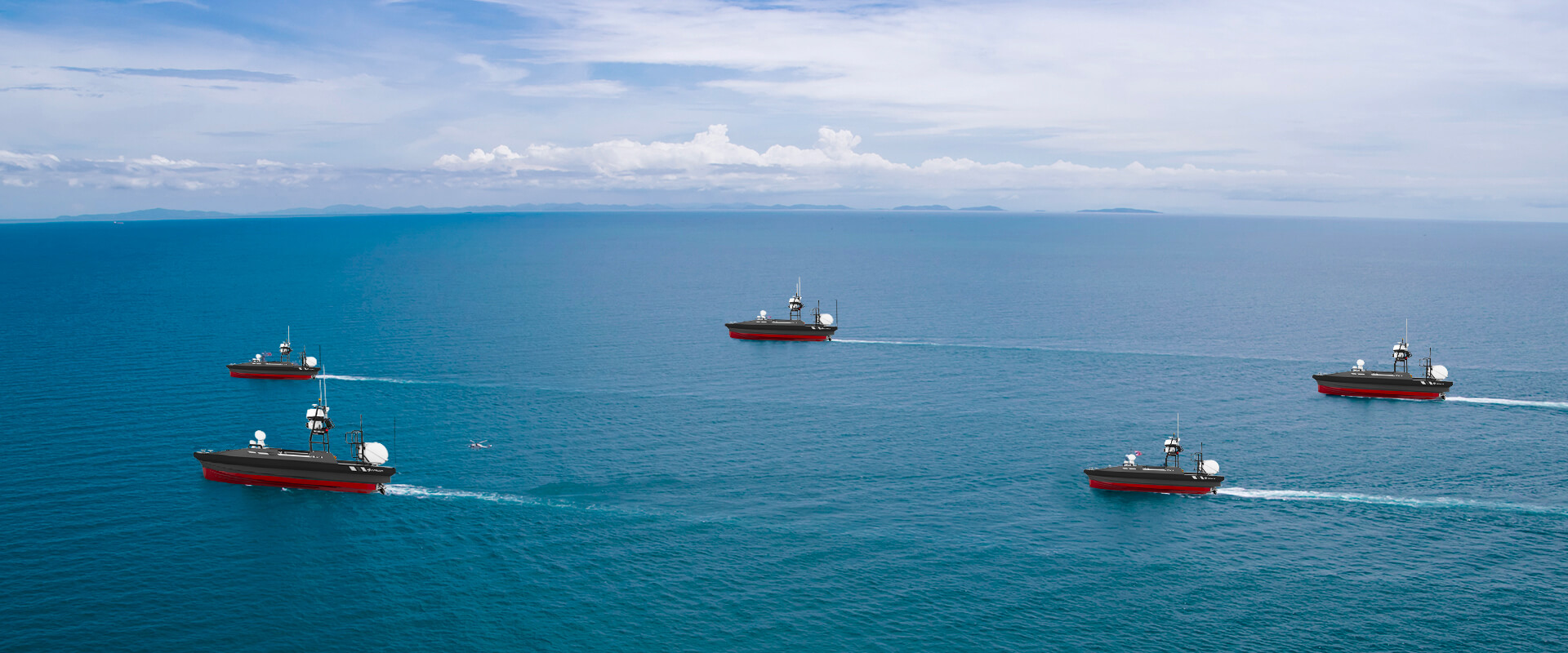

M75 06 searching image

Fleet Operation

M75 can autonomously team up to conduct massive-scale search & rescue missions to locate victims .

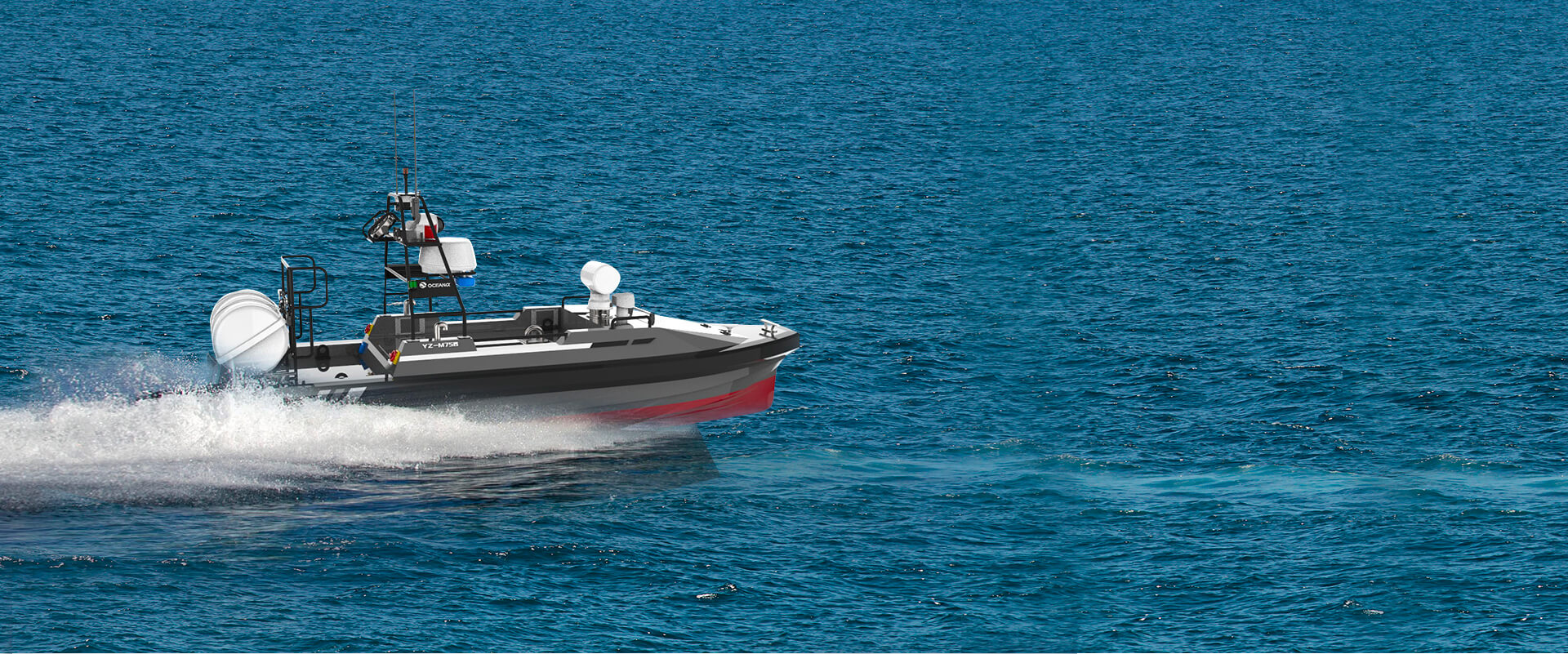

M75 07 Equipped R image

Quick emergency response

M75 runs on a high-speed water jet propeller that can reach a maximum speed of 30 knots,  enabling it to respond to emergencies promptly.

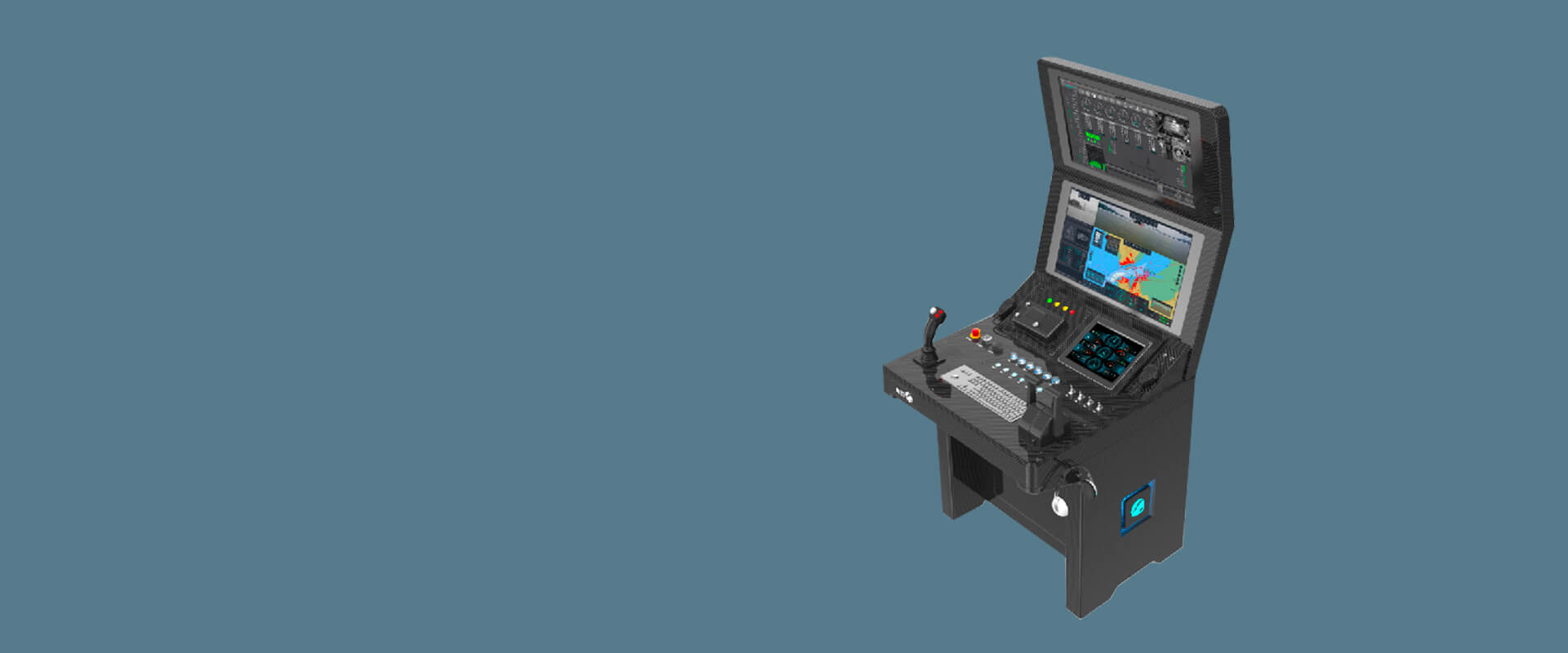

M75 08 multi screen image

Multi-screen control base station

The multi-screen control base station can be deployed in a shore-based command center, on a mothership, or in a moving vehicle, depending on the scenario.

Specification

USV Parameters
Dimension (L)5.3 m*(W) 1.72 m*(H)2.85 m
Weight 1350 kg
Payload 50 kg
Draft 0.42 m
Propulsion Water-jet Thruter
Communication Range 15 km
Max. Speed 26 kn (13.4 m/s)
Battery Life >120 nm
Survival Sea State SS-4
Survival Equipment Parameters
Crew Capacity 6 Persons
Package Dimension 0.46 m * 0.8 m
Weight About 35 kg
Life Raft Dimension 1.82*1.82*1.2 m
Items in Life Raft Freshwater, food, medicine etc

Application Case

  • 3
    M75 USV Surveys the Pearl River With Water Quality Sonde And ADCP
  • 7

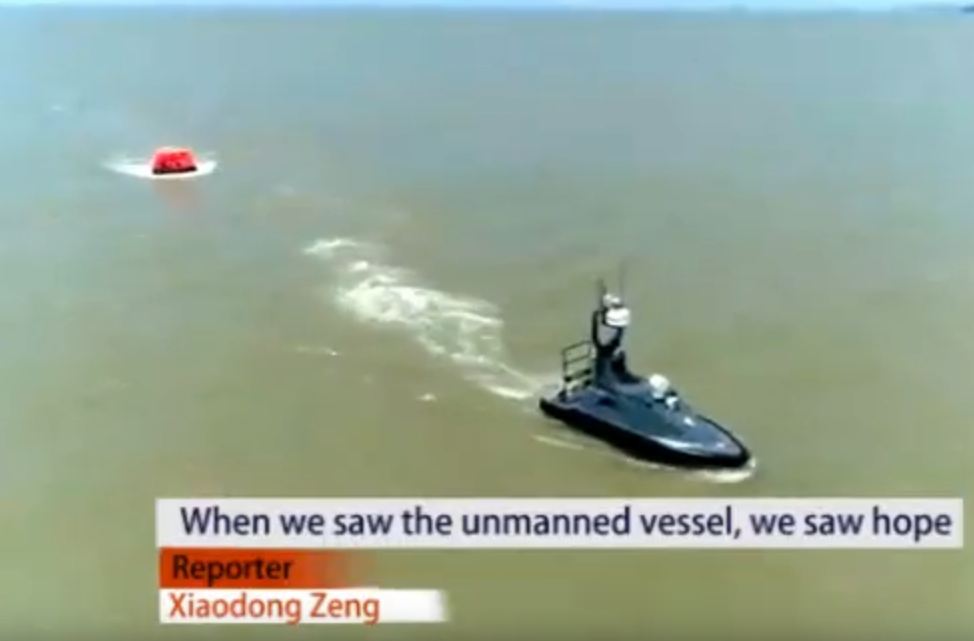

    M75 丨USV Rescues Two Drowning Victims From South China Sea
  • M75 oil gas
    OceanAlpha Develop Unmanned Vessel Solution for Oil and Gas Company

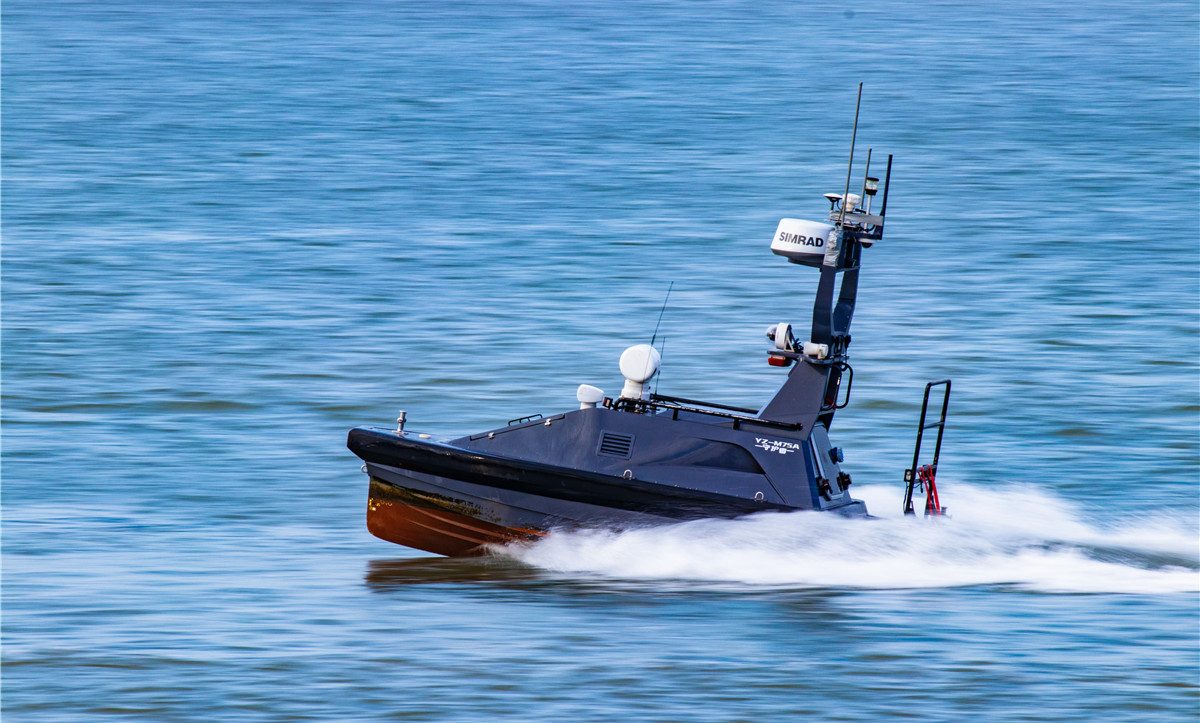

  • IMG 7229 e1553051051792
