Long Endurance Multi-Function USV

M40P is a multi-purpose surveying unmanned surface vessel(USV) platform for estuary, on-shore, and off-shore applications.
It’s designed to facilitate efficient data acquisition for construction planning and routine maintenance in the field of offshore wind farms and oil and gas exploration.

bg blank

Universal Application

The M40P  can carry a wide range of equipment to conduct bathymetry, seabed mapping, and geological hazard inspection.

Single-beam echo sounder Multibeam echo sounder  ADCP 3D LiDAR scanner
Side scan sonar Forward-looking sonar Water quality sonde Sub-bottom profiler
M40P USV details 03 image

Autonomous Navigation

Piloted by autonomous navigation algorithm, M40P can carry out round-clock inspection according to the preset route, greatly reduces the workload of and safety threats to personnel.

M40P details 07 image

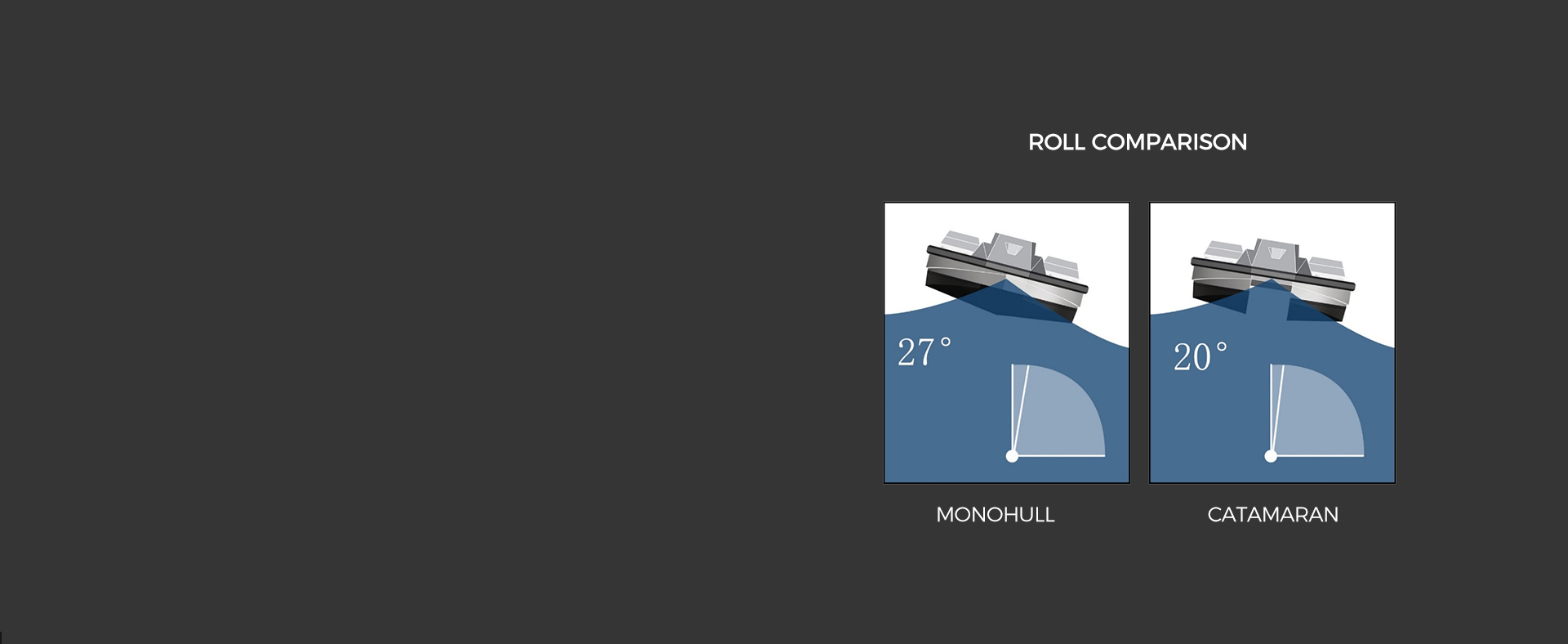

Superior Stability

M40P’s unique hull catamaran design structure design provides exceptional performance even in turbulent waves, significantly reducing swaying and spray foam, providing a stable and quite working condition for acoustic equipment.

M40P details 05 image

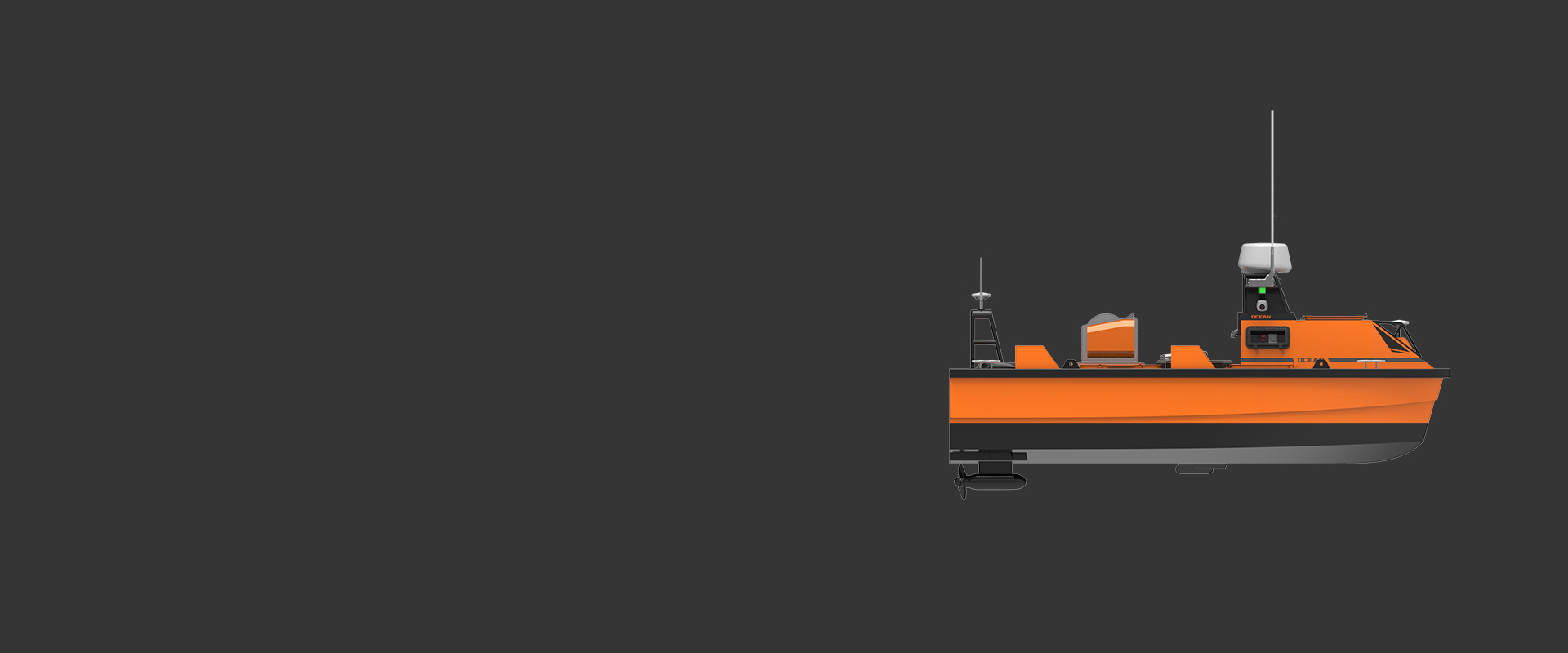

Quiet and Clean

Powered by a diesel generator, the M40P has a single lifetime of up to 24 hours, while it can operate continuously for weeks by refueling.

The generator can be turned off when surveying to provide a quiet and zero-emission operating environment for the equipment to guarantee data accuracy.

产品详情 04 image

Exceptional Maneuverability

The configuration of twin engines and twin propellers, combined with the catamaran shape, elevates its maneuverability when navigating closely around foundations constructions for zoom-in inspection.

High-precision positioning and advanced navigation control algorithm minize risk of collision.

M40P details 06 image

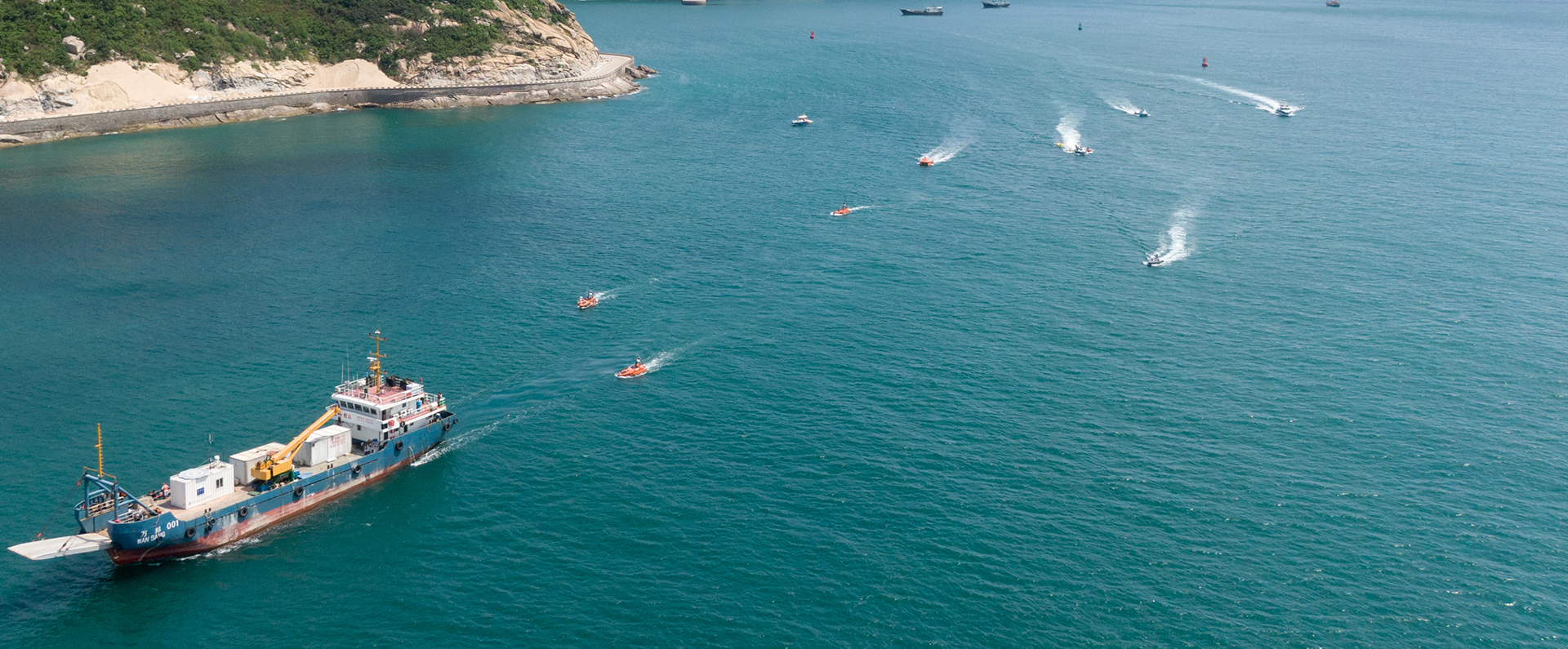

Fleet Collaboration

Multiple USVs can group up to form a fleet, navigating the same route while conducting varied inspections.

The fleet can be piloted by one workstation to conduct a large scale investigation of different dimensions, significantly reducing labor costs and improving operational efficiency.

Specification

Hull Material Aluminum alloy
Dimension (L)4.5 m *(W)2.33 m
Weight 1400kg
Displacement 1300kg
Payload 80 kg
Draft 40 cm
Propulsion Electric propulsion with differential steering
Communication Range 10 km
Max. Speed  7 knots
Survey Speed 4-5 knots
Endurance 30h/150nm
Video Monitoring Yes
Multi Missions Yes
Automatic Payload Lifter Yes
Operation Sea State SS 2



Application Case

  • 01
    M40P USV Conducts Long-Duration Offshore Geomagnetic Observation
  •  7 e1553492065326
    M40 & M80 USV Surveys Offshore Wind Farm Turbine Piles and Cable Scouring
  • China's First Gravity and Magnetic Survey Task Carried out by USV

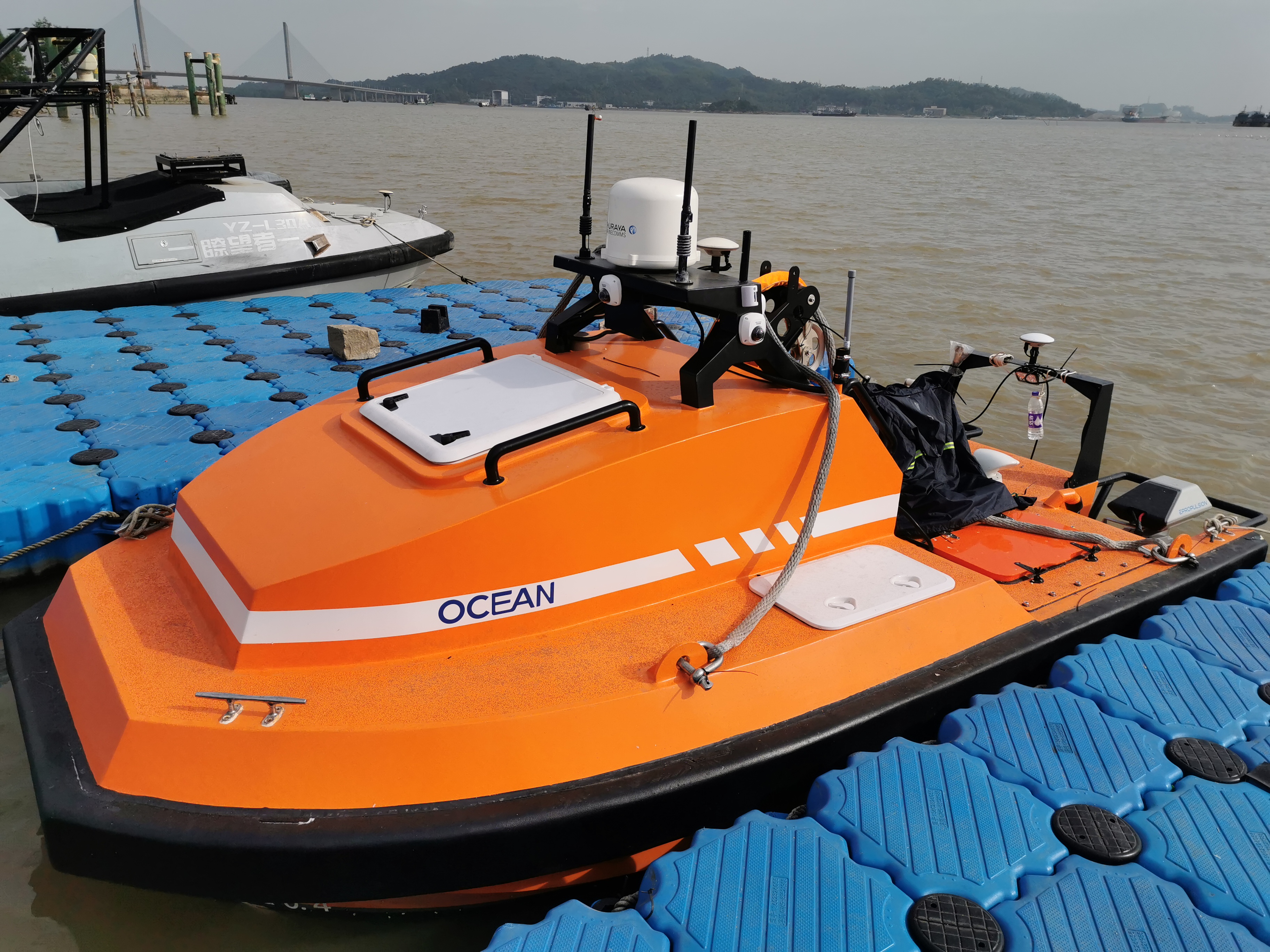

  • IMG 20191031 090257

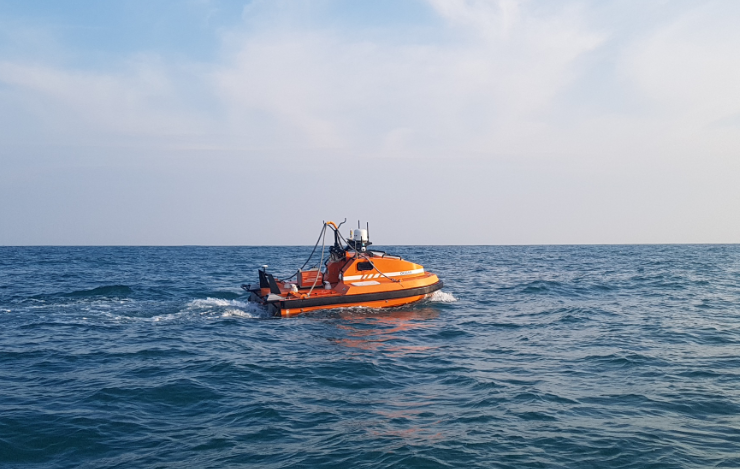

  • M40P USV on the sea

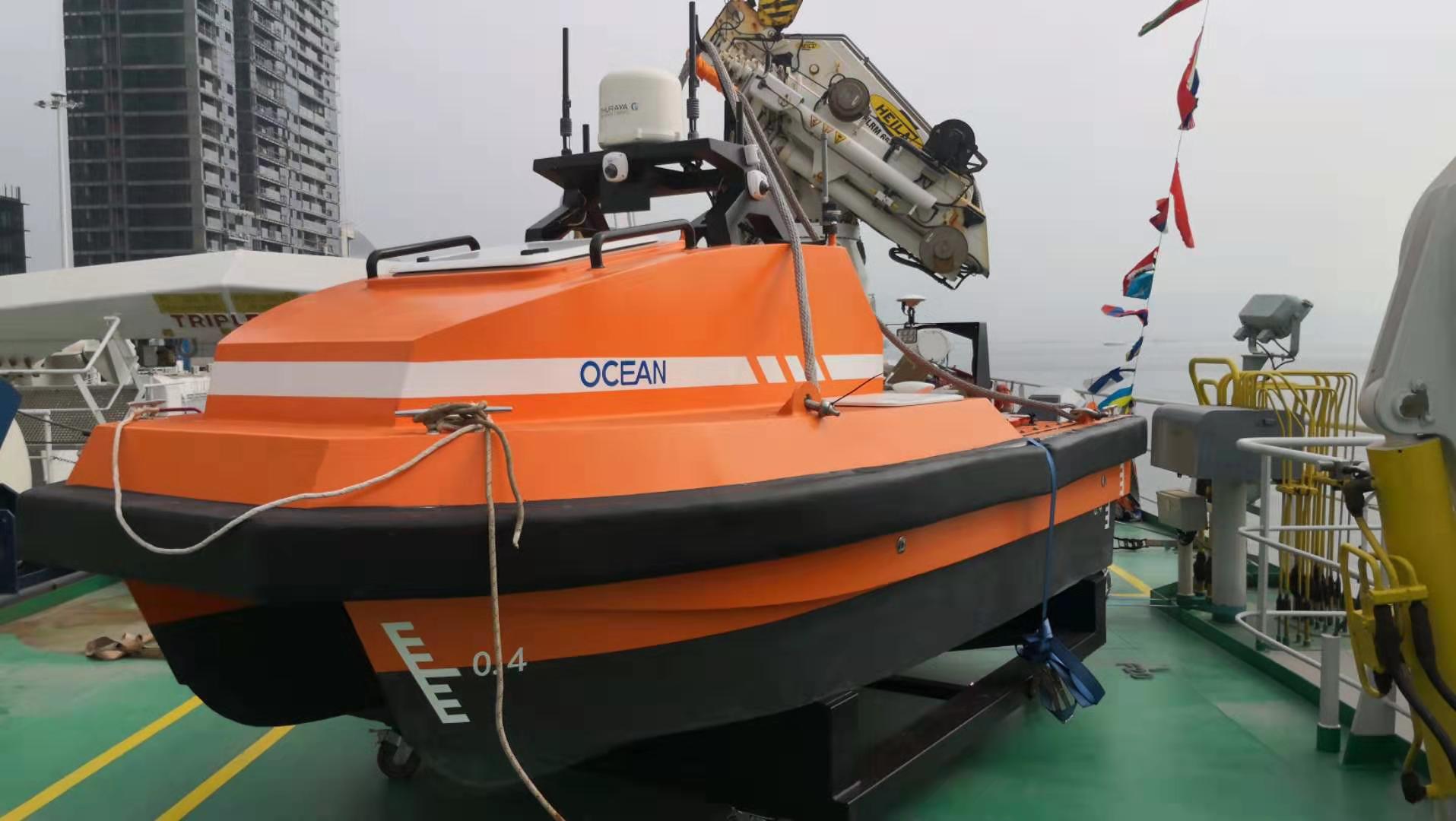

  • 微信图片 20191114155707

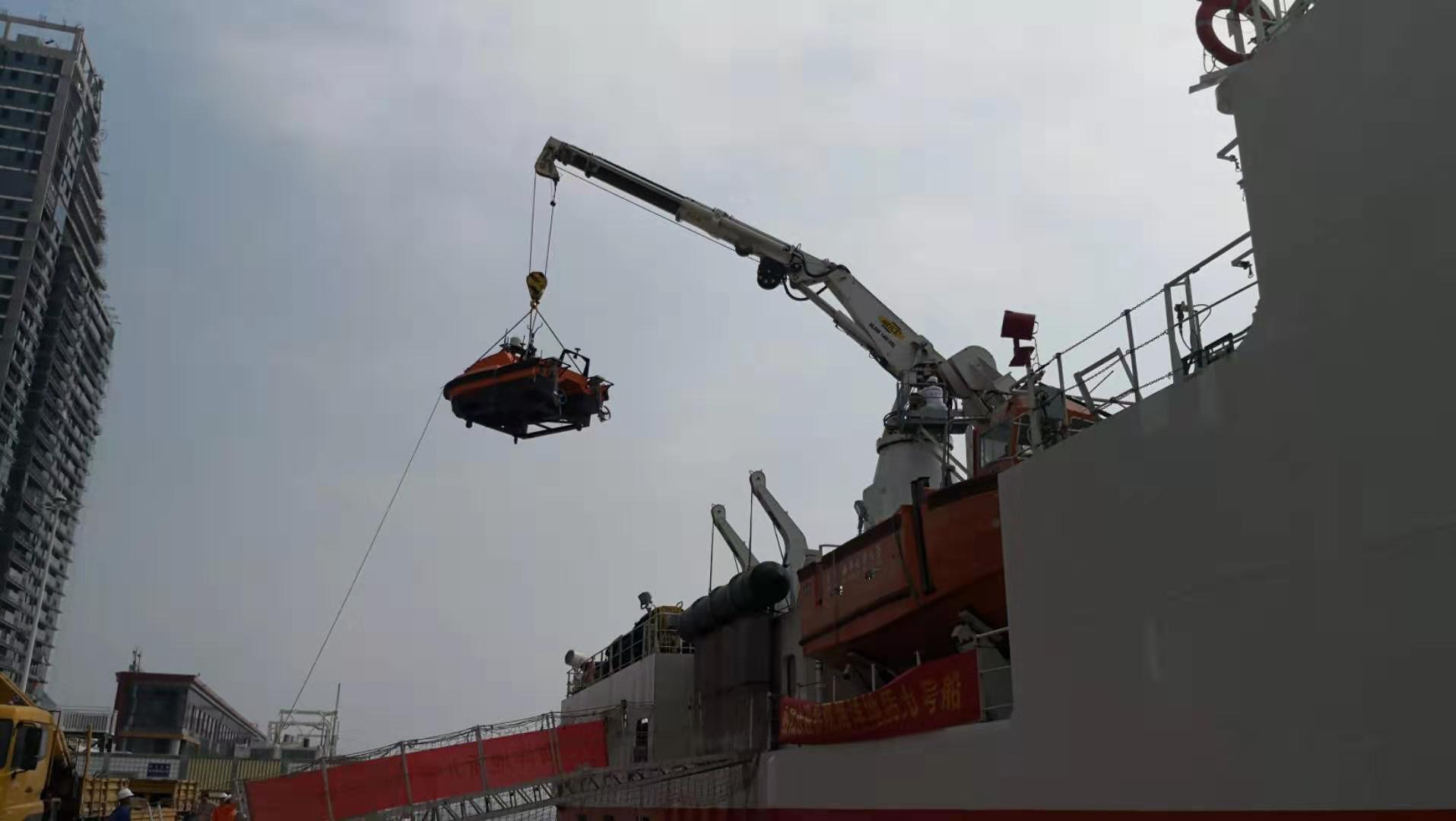

  • 微信图片 201911141557071
