Autonomous Survey Boat

Long endurance multi-functional platform for hydrographic surveying

bg blank

Large capacity for oceanographic survey instruments

The M80 USV can carry up to 200kg of hydrographic & geophysical instruments to conduct multi- purposed hydrographic surveys on deep sea.

Singlebeam echo sounder Multibeam echo sounder  ADCP 3D LiDAR scanner
Sub-bottom profiler
Side scan sonar Forward-looking sonar Water quality sonde

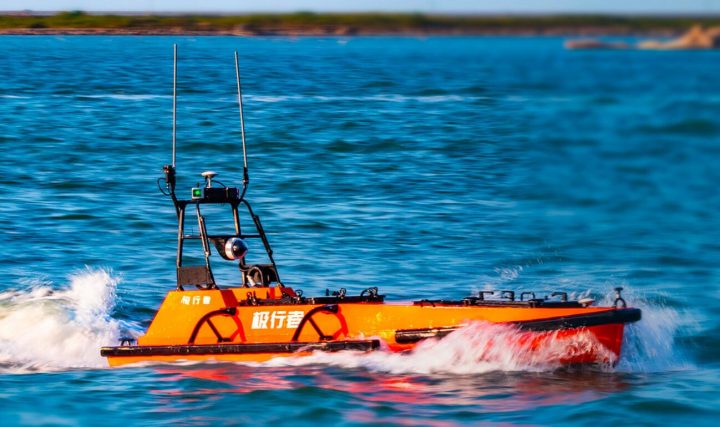

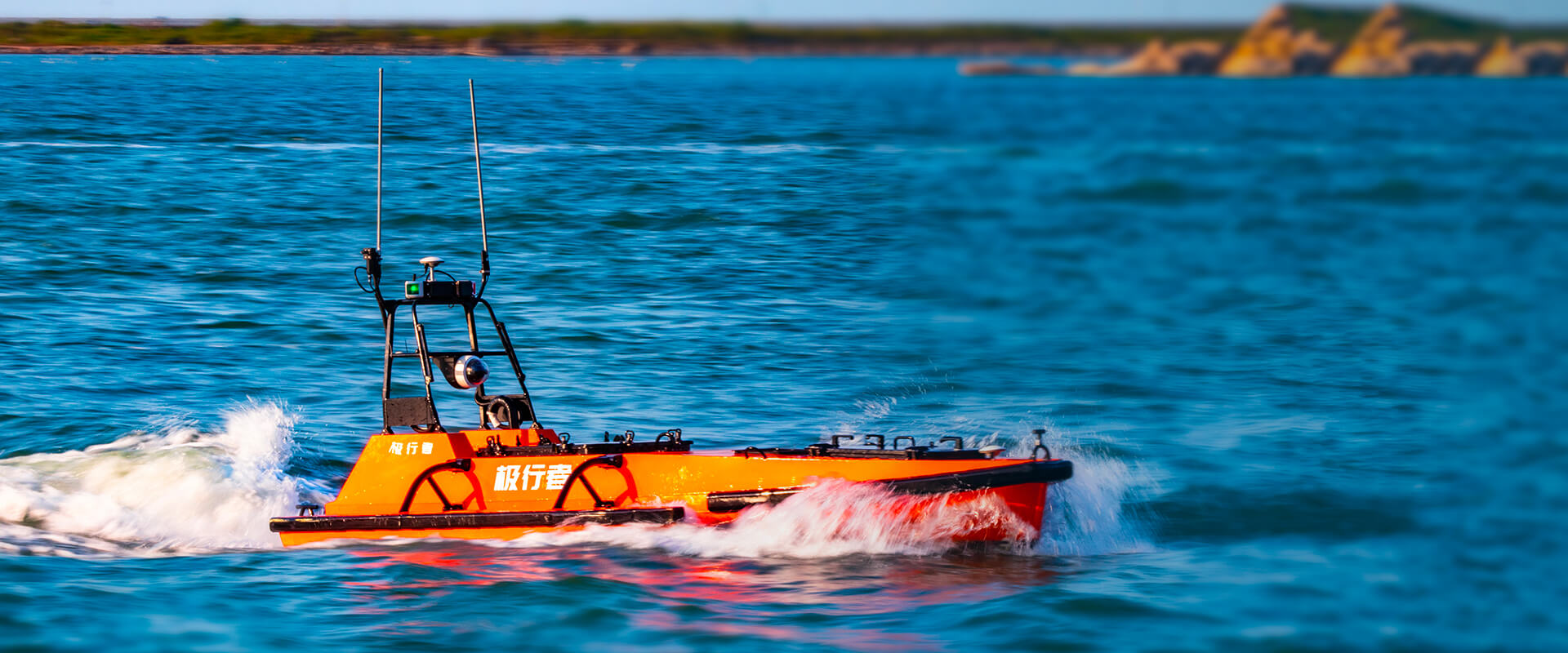

M80 03 longer  e1554360372785

Longer endurance, faster speed

  • The USV can sail 50 hours continuously with a 350 kg (gallon liter) fuel tank.
  • The USV can sail up to 12kn/s with a high power water-jet propeller.

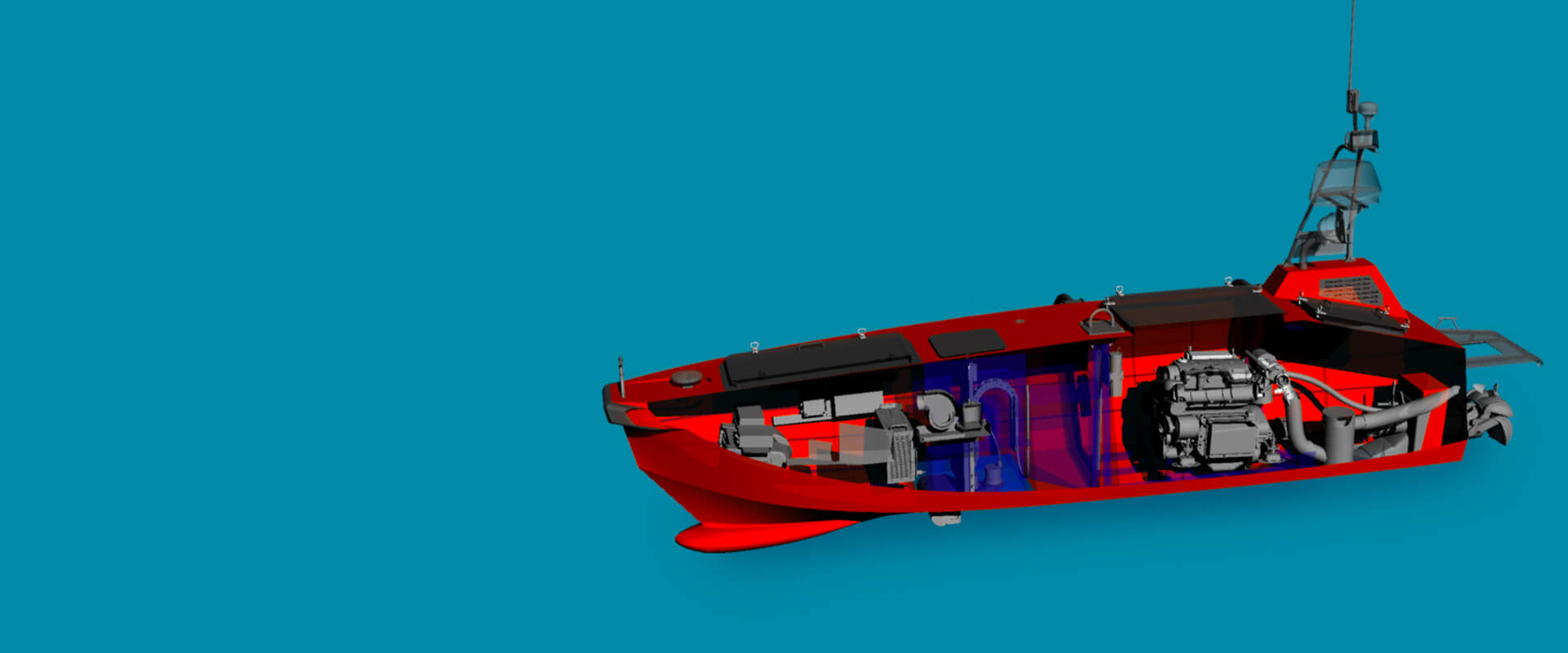

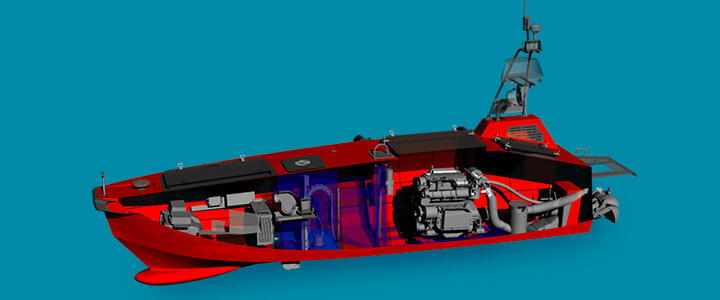

M80 hull equipment M80 2

Better protection to equipment

A build-in automatic lifter can lift and drop the instrument depending on whether the USV is sailing or surveying, which can protect transducers and save energy correspondingly.

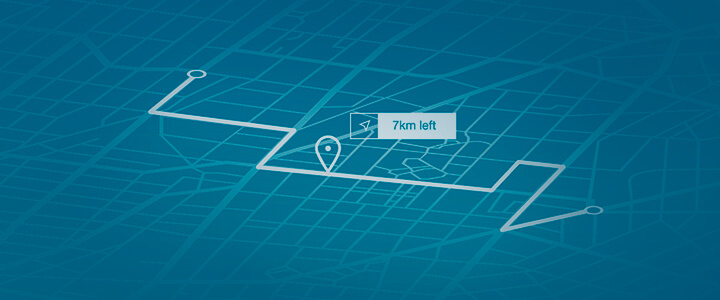

M80 07 planning M80 1

Automatic multi-purpose survey

  • Both the USV and the survey instruments are operated by the base station. Navigated by the GNSS positioning system, the USV can autonomously conduct pre-programmed multi-purpose surveying missions and send back data in real-time.
  • Operators can also control the USV manually within a distant of 2 km by using a remote controller.

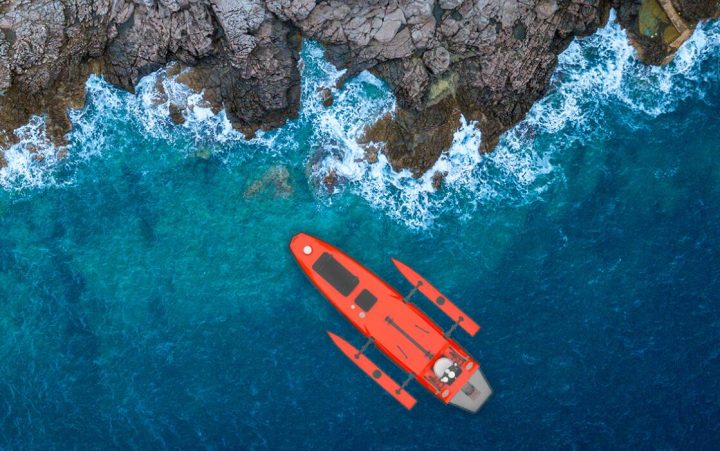

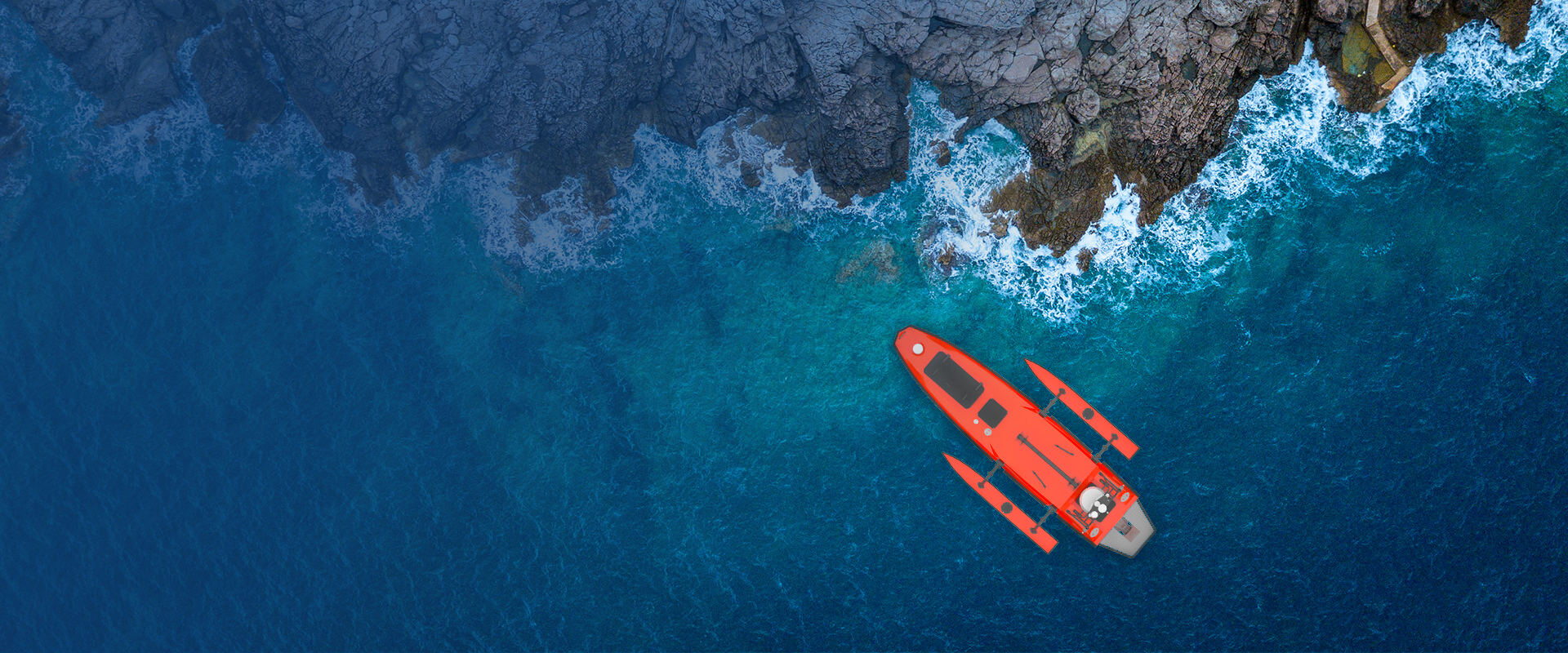

M80 collision avoidance  e1554360424521

Intelligent collision avoidance

Deployed with a 4G radar, an HD camera and a LiDAR, the M80 USV gives an excellence performance in collision avoidance.

User can observe water environments using the real-time video feed to better avoid obstacles when operating in manual mode.

Specification

Hull Material Aluminum
Dimension (L)5.65 m *(W)2.4 m *2.9m(H)
Weight 1600 kg
Payload 200 kg
Draft 45 cm
Propulsion Electric Motor
Collision Avoidance Millimeter Wave Radar
Communication Range >10 km
Max. Speed  10 knots
Survey Speed 5-6 knots
Endurance 200 nm
Video Monitoring Yes
Multi Missions Yes
Automatic Paload Lifter Yes
Operation Sea State SS 3



Application Case

  •  1 e1560908262576

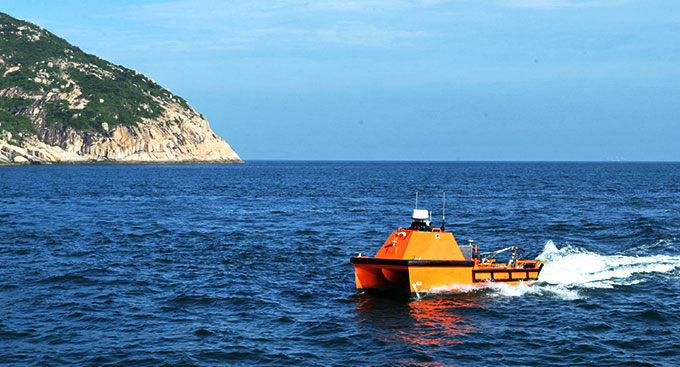

    M80 USV Deploying A Reson T20P MBES Conducts Underwater Topography Survey Around A Triangle Island
  • 1
    M80 USV Conducts the Underwater Topographic Survey in The Antarctica
  •  7 e1553492065326

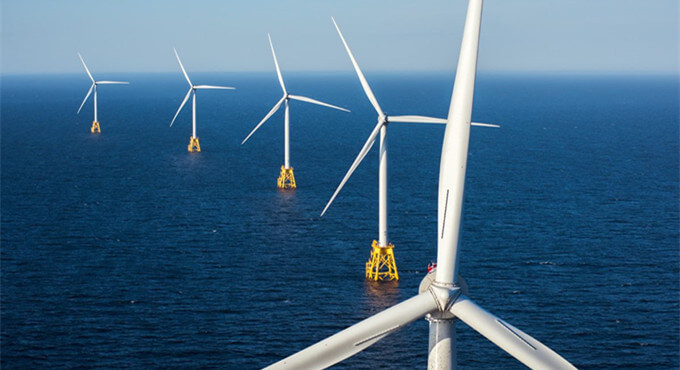

    M40 & M80 USV Surveys Offshore Wind Farm Turbine Piles and Cable Scouring
  • China's First Gravity and Magnetic Survey Task Carried out by USV
  • IMG 7553

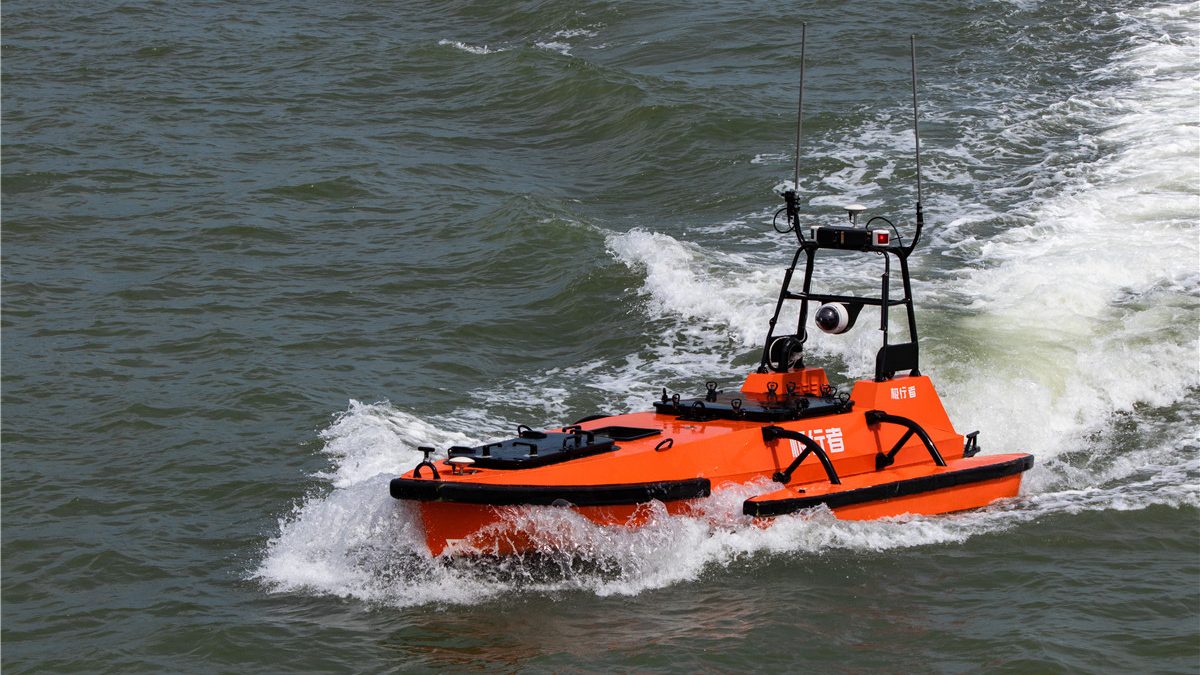

  • IMG 7630 e1553050719537

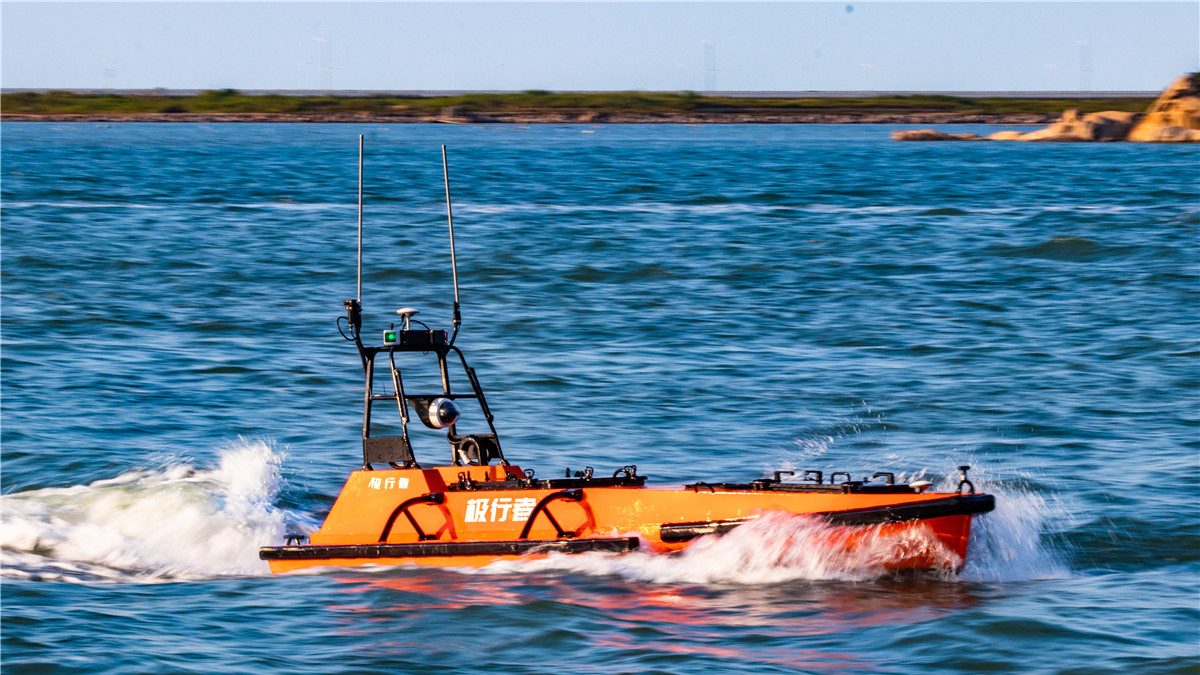

  • IMG 8514 e1553050785152

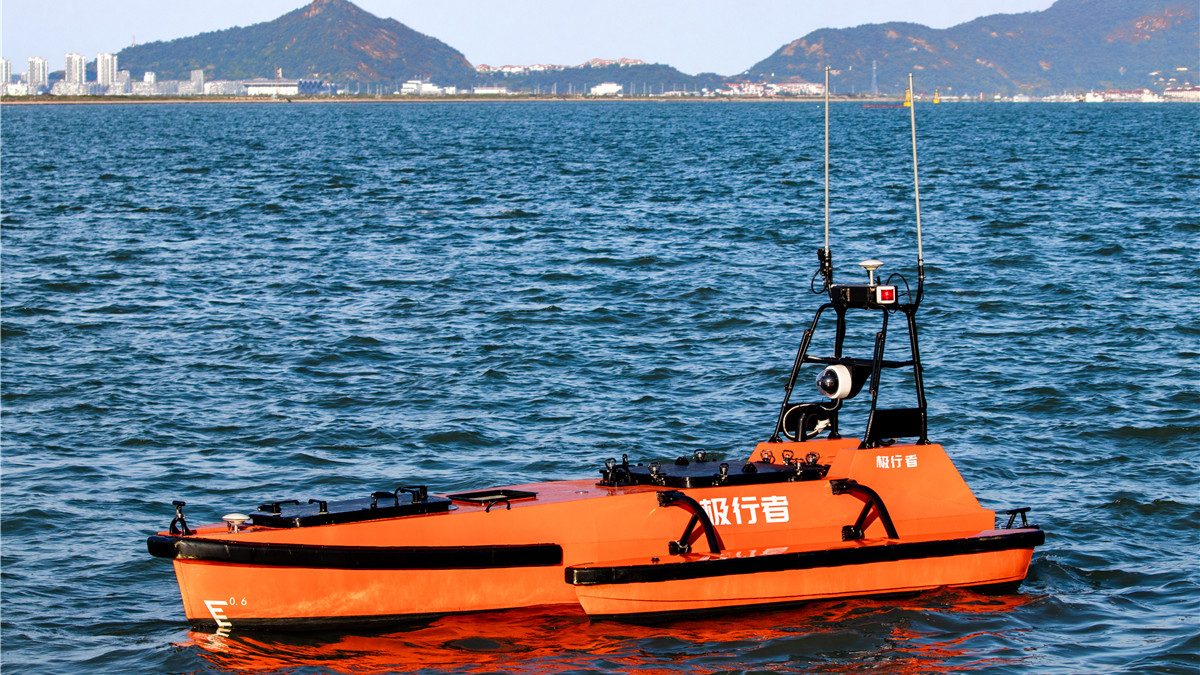

  • IMG 9070 2 e1553050827991

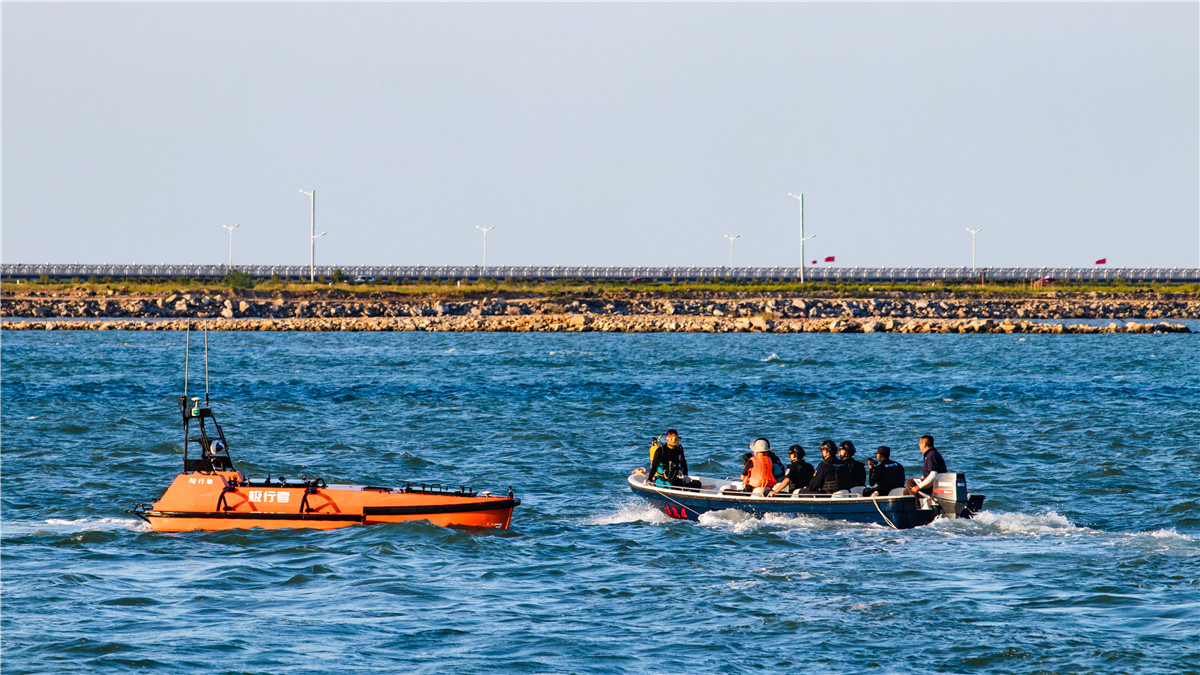

  • IMG 9607

Video

Related Product

  • alt=

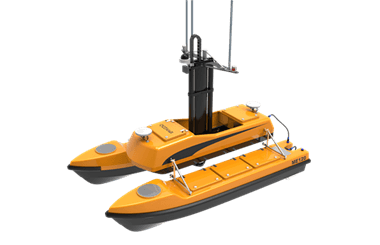

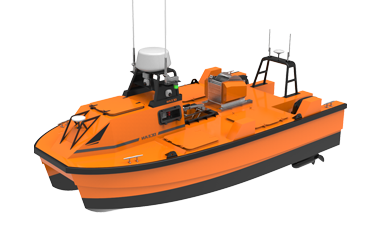

    ME120

    Convertible catamaran USV platform for hydrographic survey

  • alt=

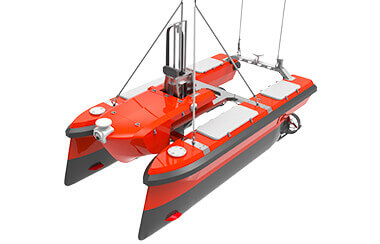

    M40
