M40 | Unmanned Surface Vehicle丨OceanAlpha

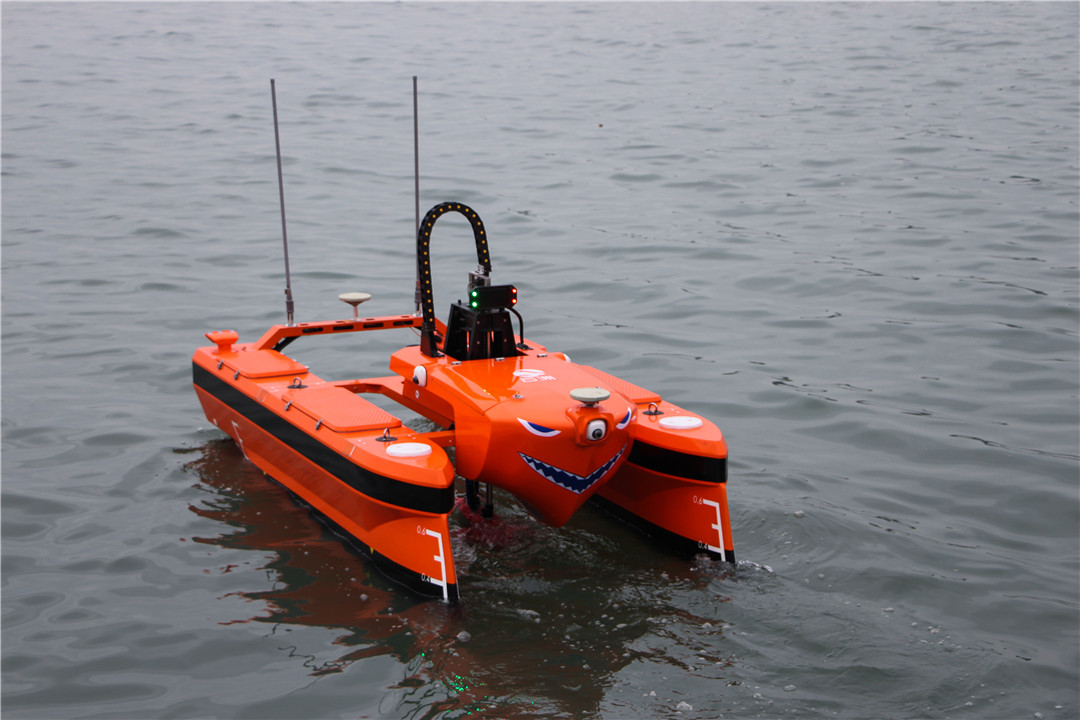

M40 profile

Autonomous Hydrographic Survey Boat

A state of the art hydrographic platform designed for multi beam survey

bg blank

Modular Wet/Dry Payload Bay

The M40 USV has a typical payload capacity of 60 kg, its dry payload bay can be replaced on filed to install different sensors.

Singlebeam echo sounder Multibeam echo sounder  ADCP 3D LiDAR scanner
Side scan sonar Forward-looking sonar Water quality sonde Sub-bottom profiler
M40 03 equipment  e1553840973395

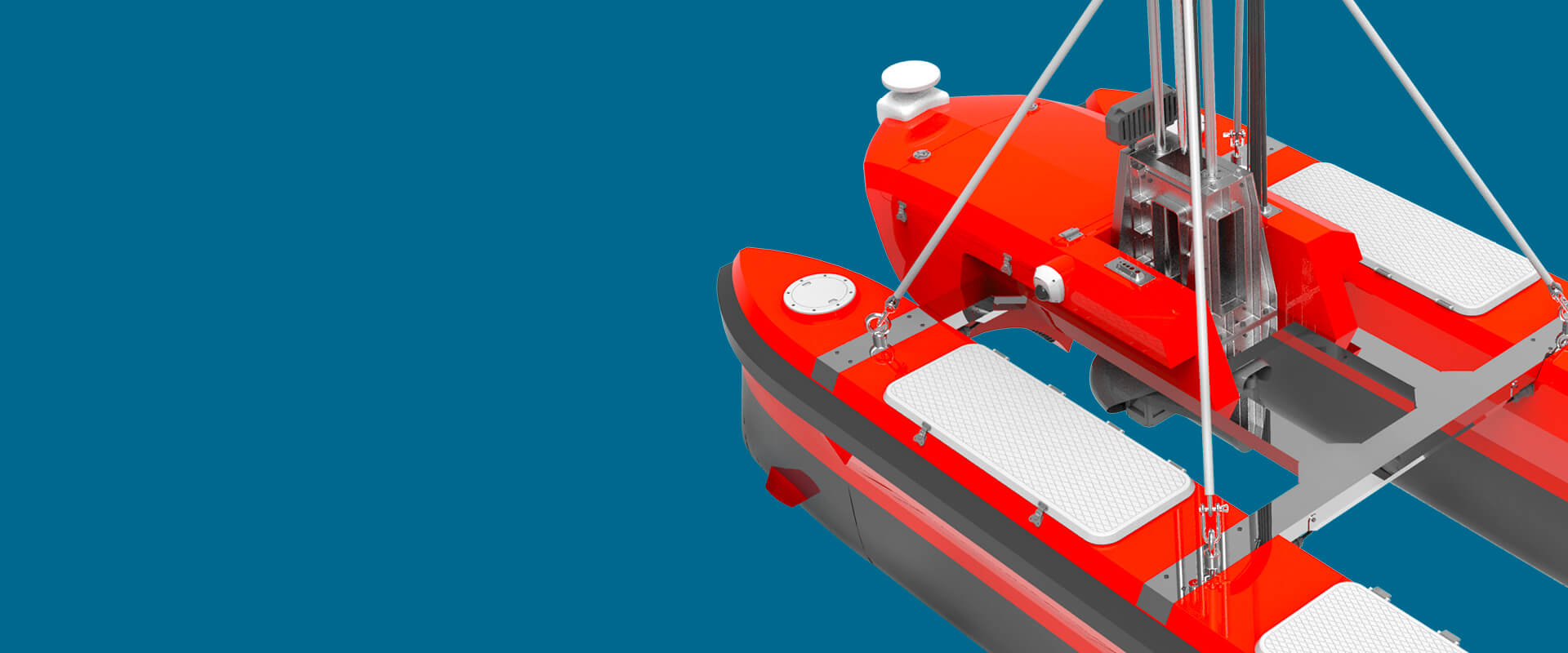

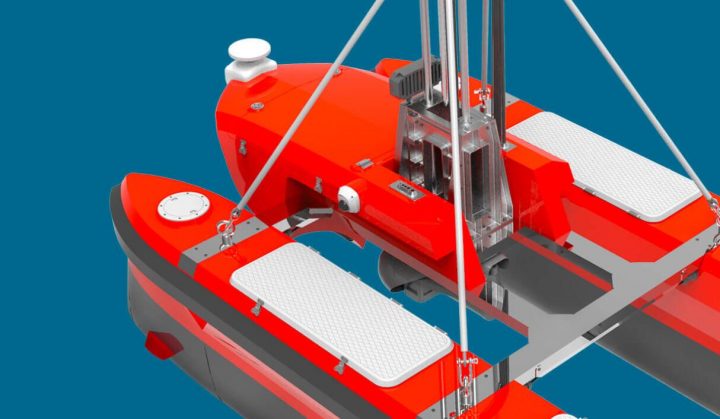

Automatic Lifter For Wet Payload

A build-in automatic lifter can lift and drop the instrument depending on whether the USV is sailing or surveying, which can protect transducers and save energy correspondingly.

M40 04 transformation  e1553840988735

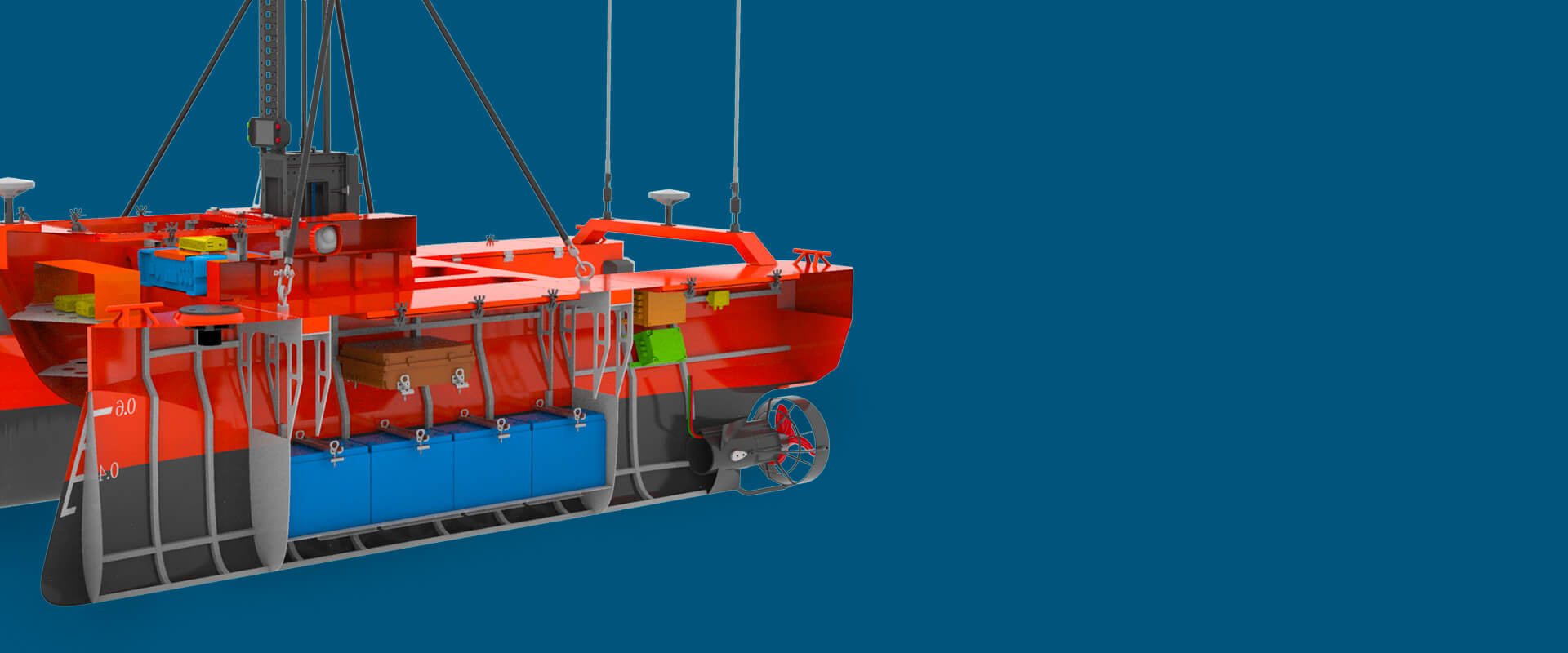

Flexible Transportation & Maintenance

Both the component system and the mission system utilize a modular design, making it easy to switch between different mission deployments and maintain the USV.

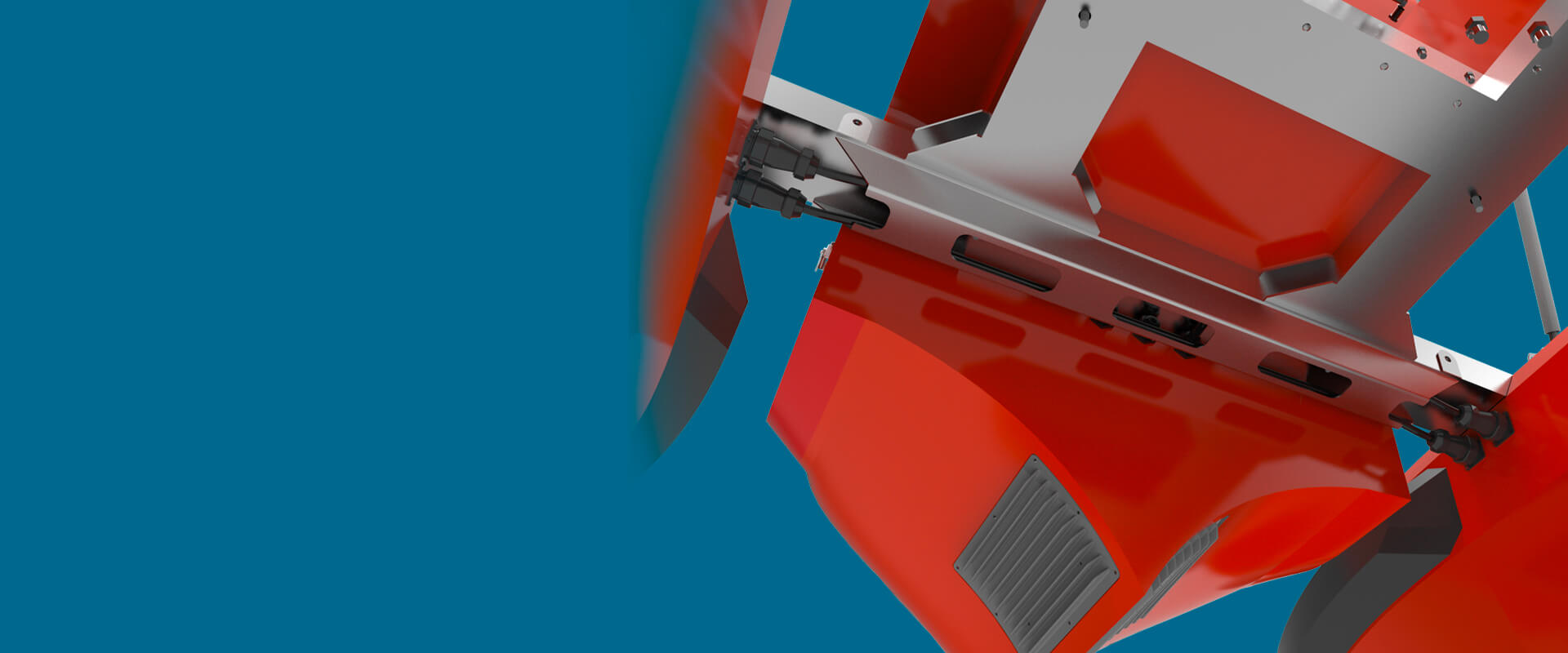

M40 05 shaking  e1553841011702

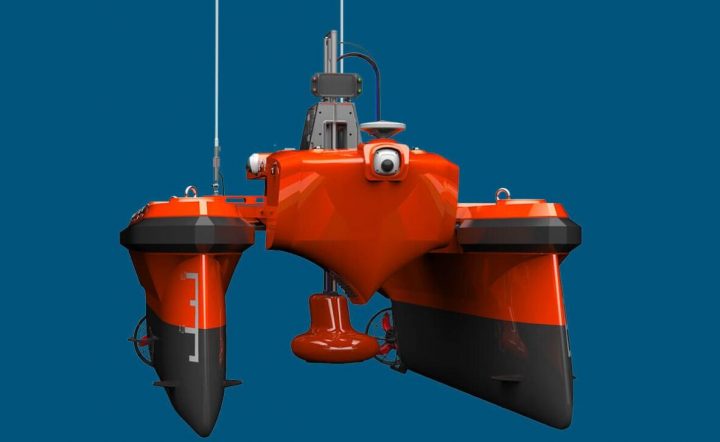

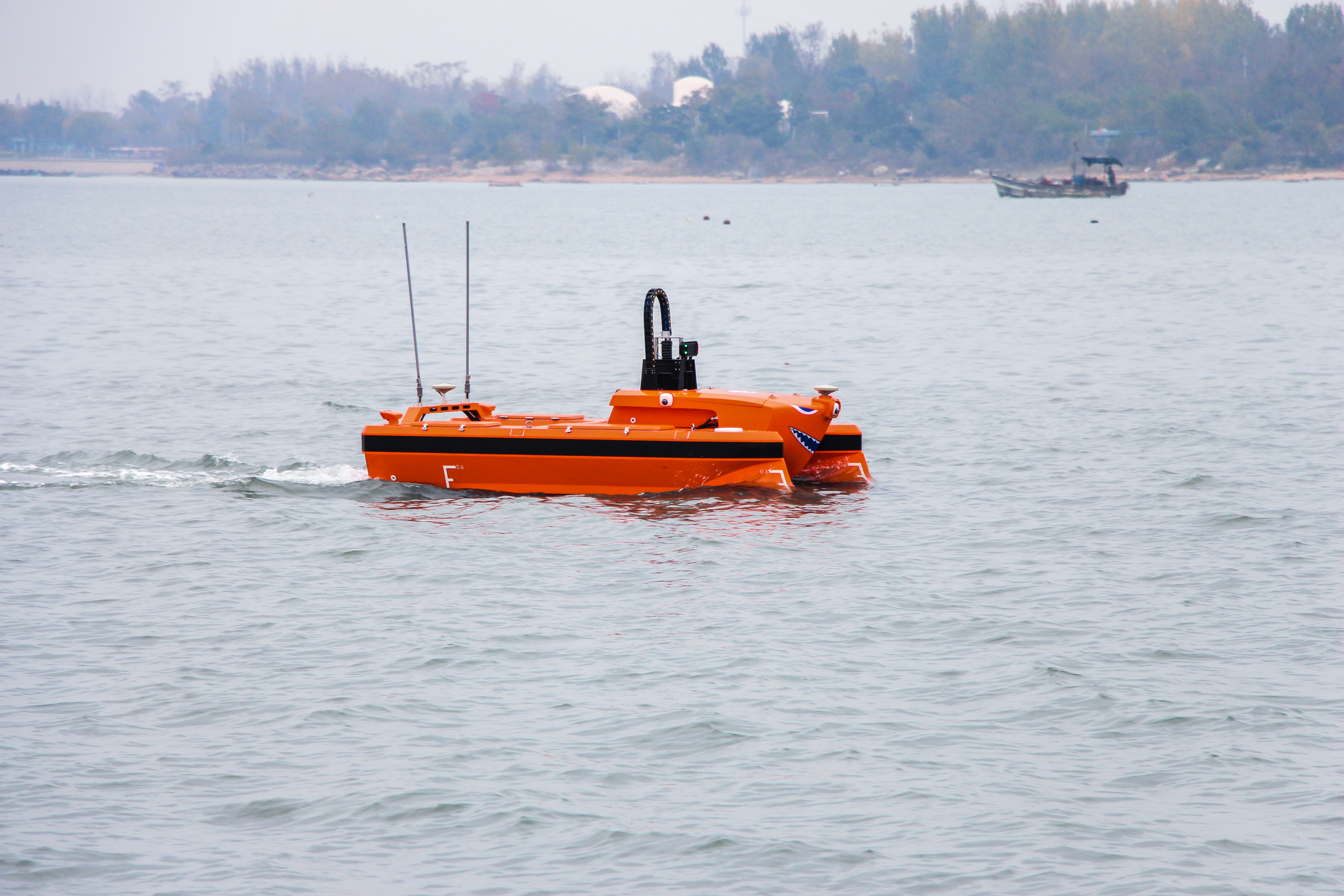

Lower Noise and Higher data quality

The innovative wave-piercing bottom of the M40 USV can slice through waves to reduce shaking and noise during sailing which allows instruments to collect data of higher quality.

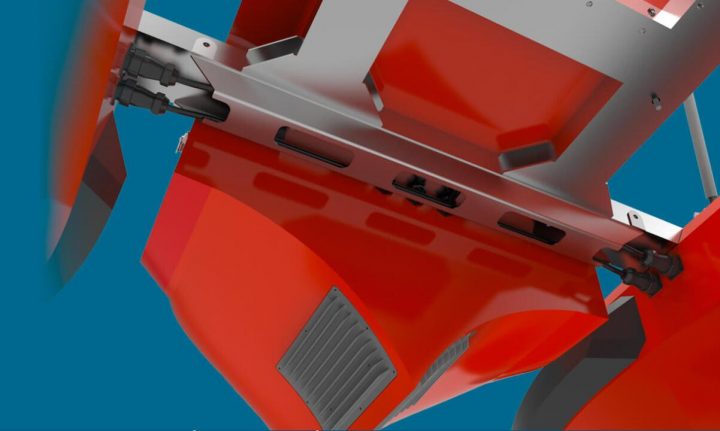

M40 06 maintenance e1551941706719  e1553841025765

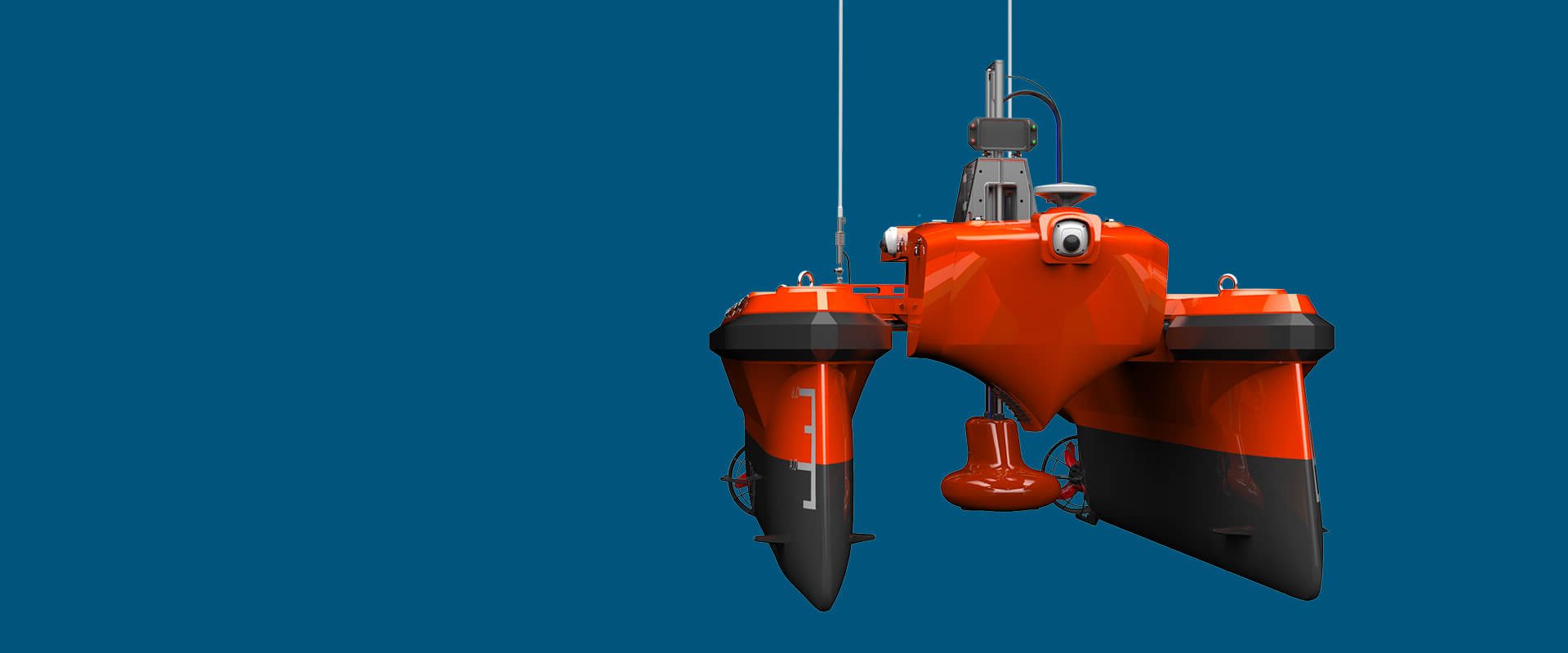

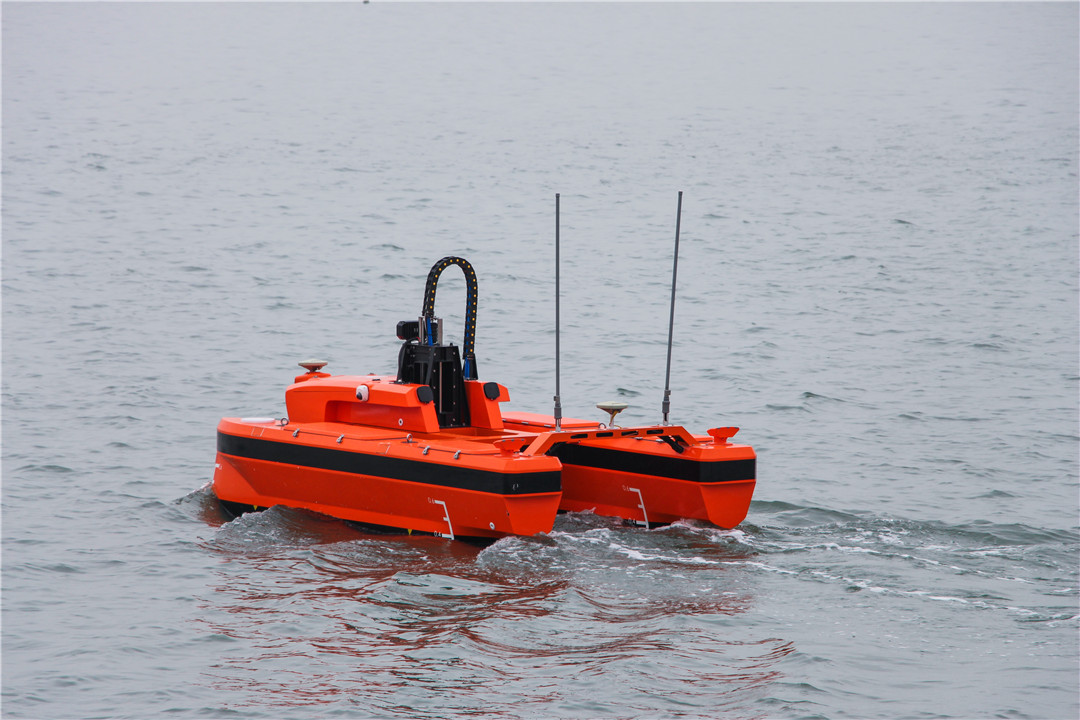

Stable Navigation and Great Line Tracking Ability

The steady catamaran hull design and low vibration electric propulsion provides great stability for survey navigation.

M40 07 power e1551941751104  e1553841039978

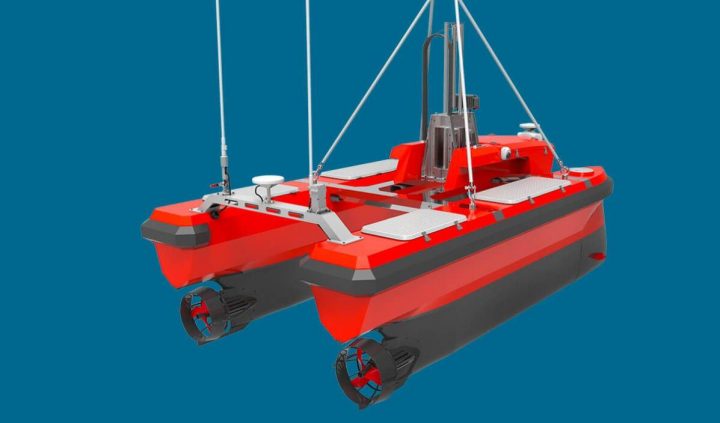

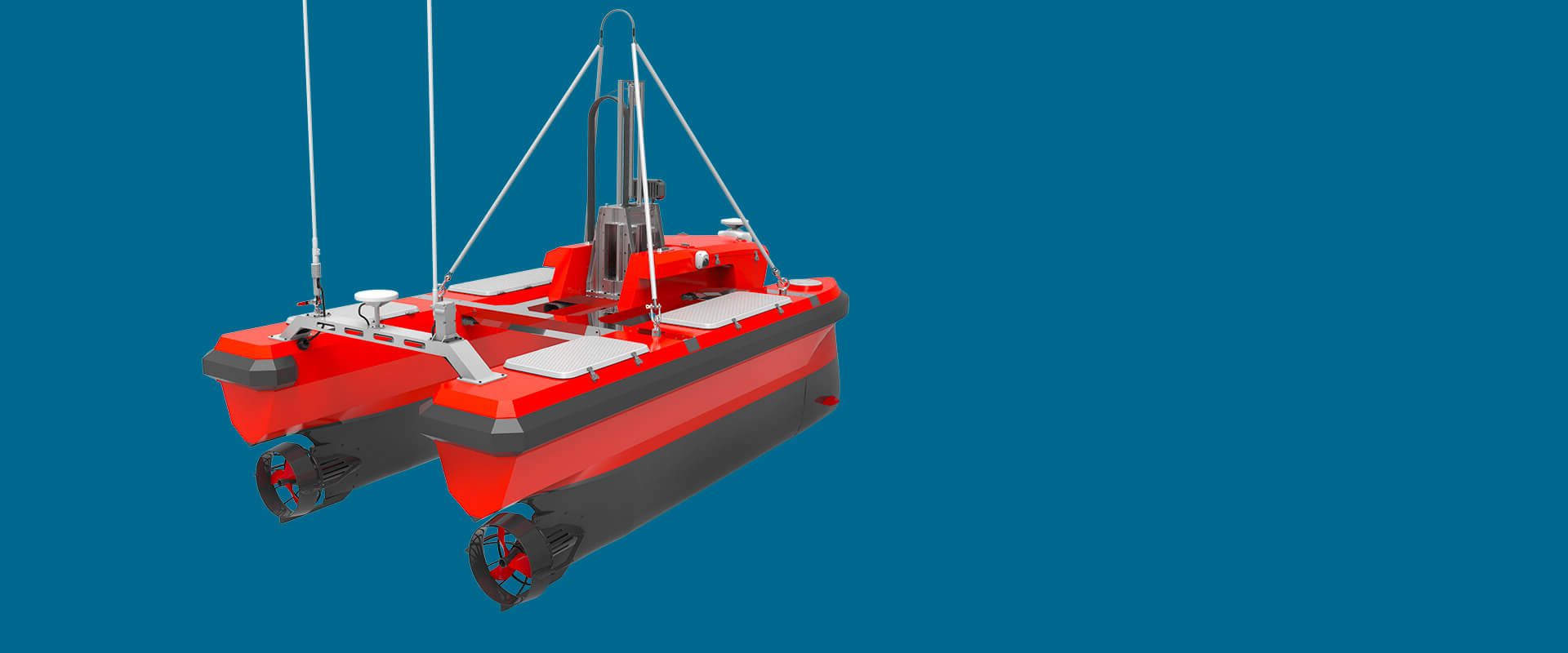

High power electric propeller

The M40 USV is driven by lithium polymer batteries and  is able to reach the speed of 7 knots in full payload.

M40 08 planning  e1553841221285

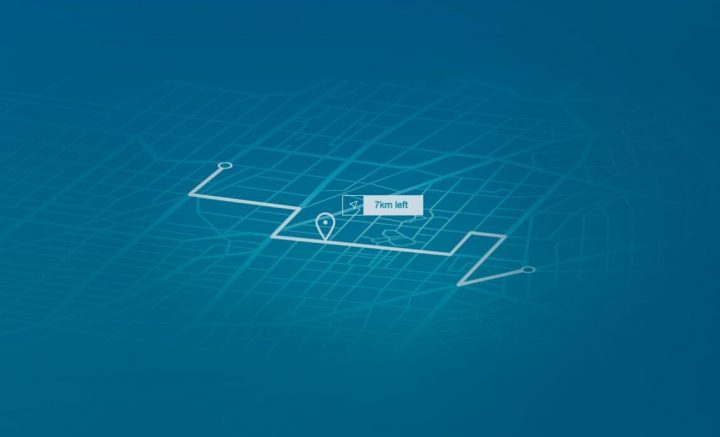

Automatic Multi-purpose Survey

  • Both the USV and the survey instruments are operated by the base station. Navigated by the GNSS positioning system, the USV can autonomously conduct pre-programmed multi-purpose surveying missions and send back data in real-time.
  • Operators can also control the USV manually within a distant of 2 km by using a remote controller.

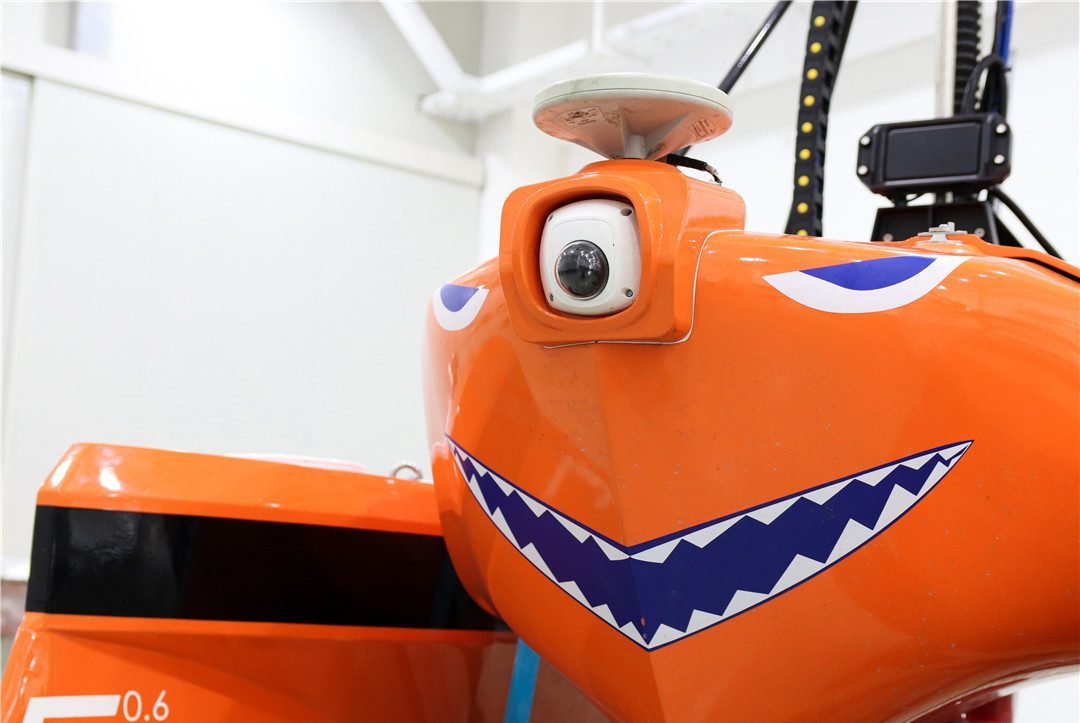

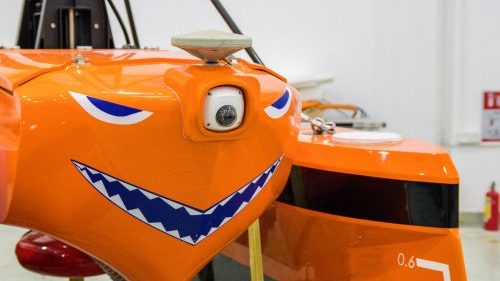

M40 collision avoidance  e1553841234546

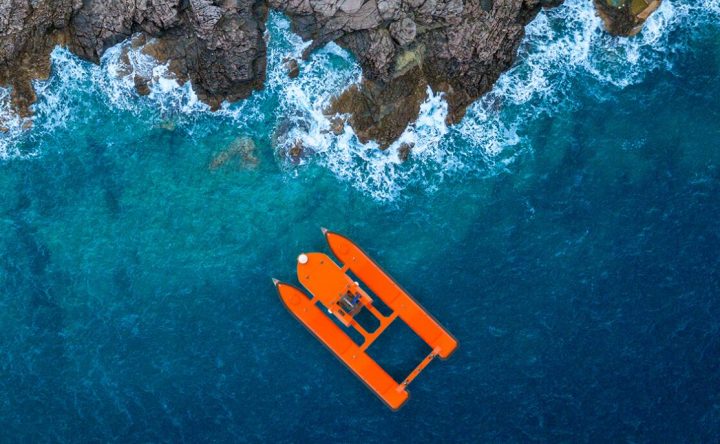

Collision Avoidance System

  • Collision avoidance system can detect obstacles in 50 meters ahead to avoid collision

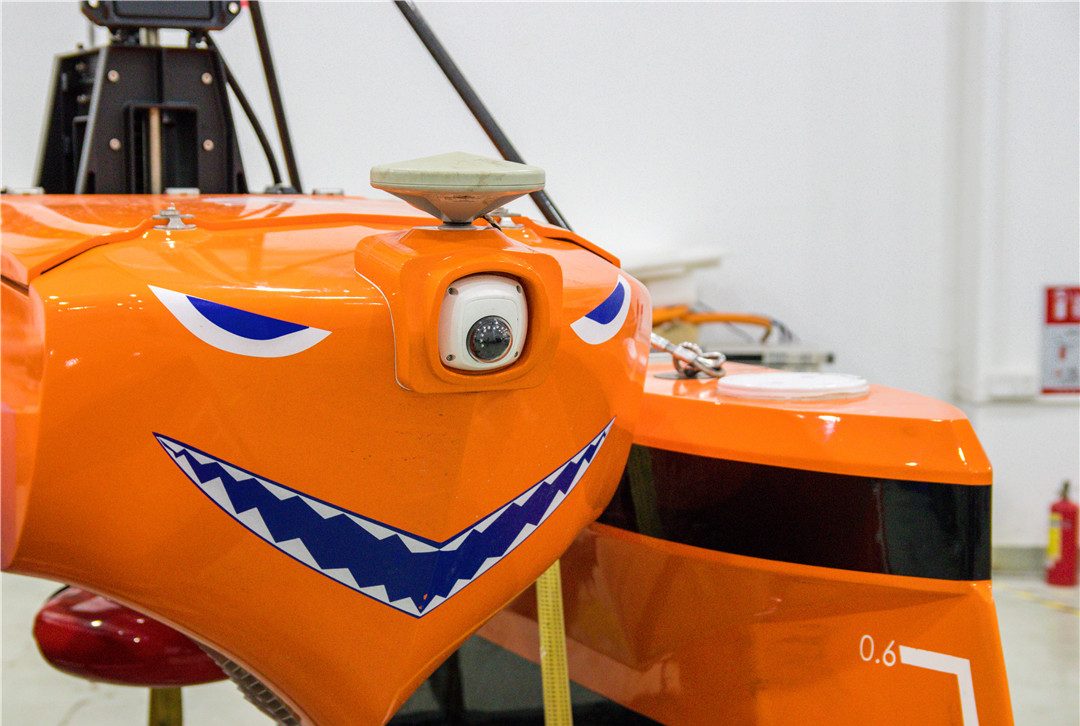

  • User can observe the water environment around the USV via 2 onboard cameras.

Specification

Hull Material Aluminum
Dimension (L)3.5 m *(W)1.85 m*1.8m(H)
Weight 530 kg
Payload 60 kg
Draft 40 cm
Propulsion Electric Motor
Collision Avoidance Millimeter Wave Radar
Communication Range Autopilot: 10 km    Remote Control: 1km
Max. Speed  7 knots (3.5 m/s)
Survey Speed 4-5 knots (2.3 m/s)
Battery Life 6h/30nm ( survey speed)
Video Monitoring Yes
Multi Missions Yes
Automatic Transducer Lifter Yes
Operation Sea State SS 2



Application Case

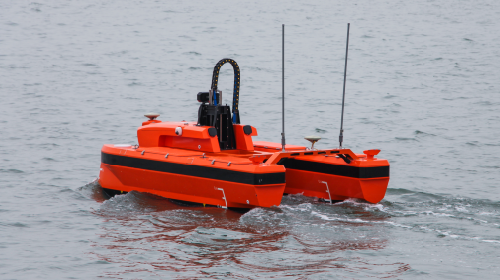

  • M40USV detects oil pipeline
    M40 USV Checks Submarine Oil Pipeline in A Restricted Area
  • M40 1 e1566197508761
    Why Acoustic Instrument Performs Better on USVs?
  • 12
    M40 USV Conduct Underwater Topography Survey With A Reson T20P Multibeam Sonar
  • 5
    M40 USV Surveying With MS400 Multibeam Sounding System And Ping 3D Side Scan Sonar
  •  7 e1553492065326
    M40 & M80 USV Surveys Offshore Wind Farm Turbine Piles and Cable Scouring
