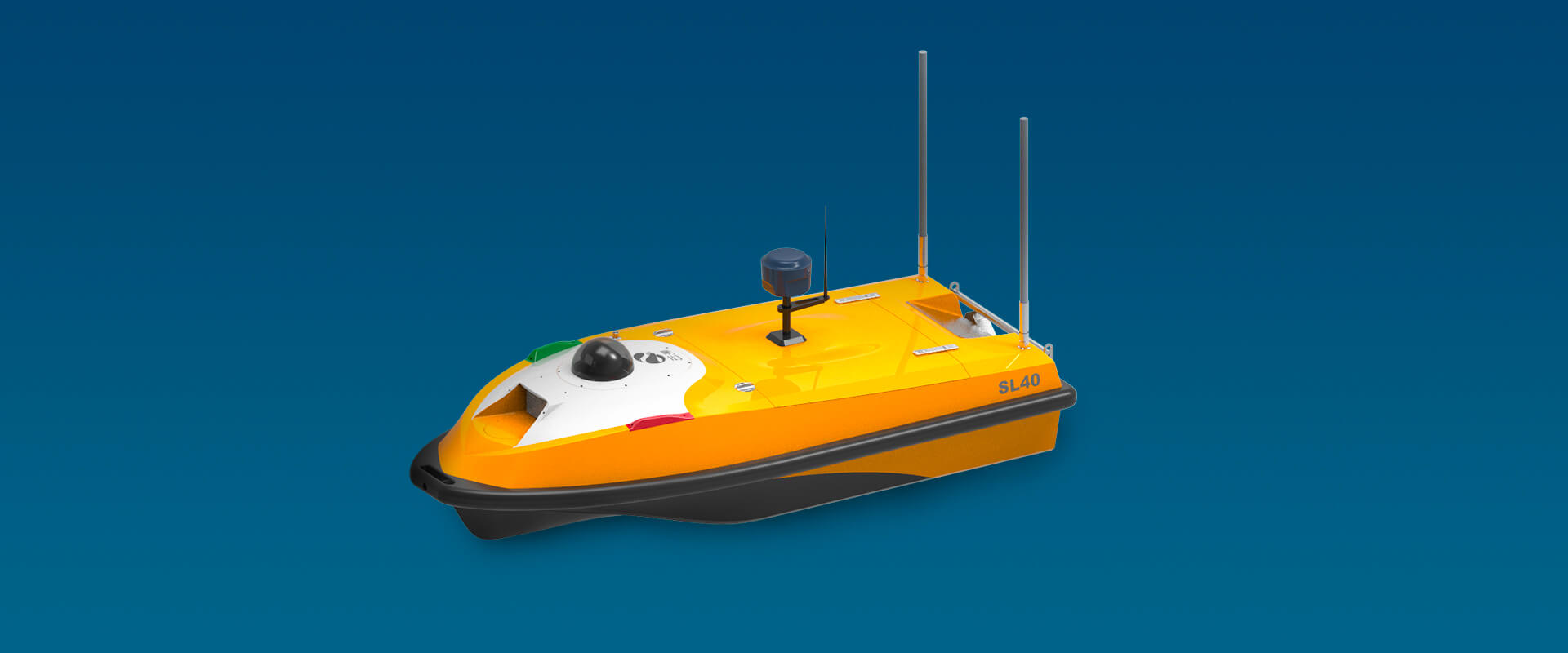

SL40Y profile

Remote Control Survey Boat

Waterjet high speed platform for water discharge and bathymetry measurement

40 instrument background  e1553846978556

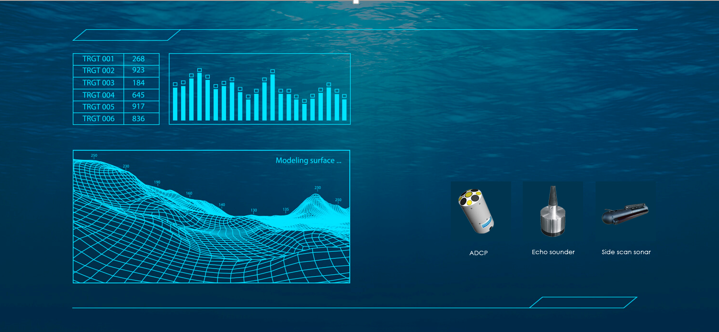

Rapid installation with ADCP and echosounder

Instruments, such as ADCPs, ecosounders and side scan sonars, with diameter of 5 cm to 18 cm can be rapidly installed to the dedicated cabin on the USV.

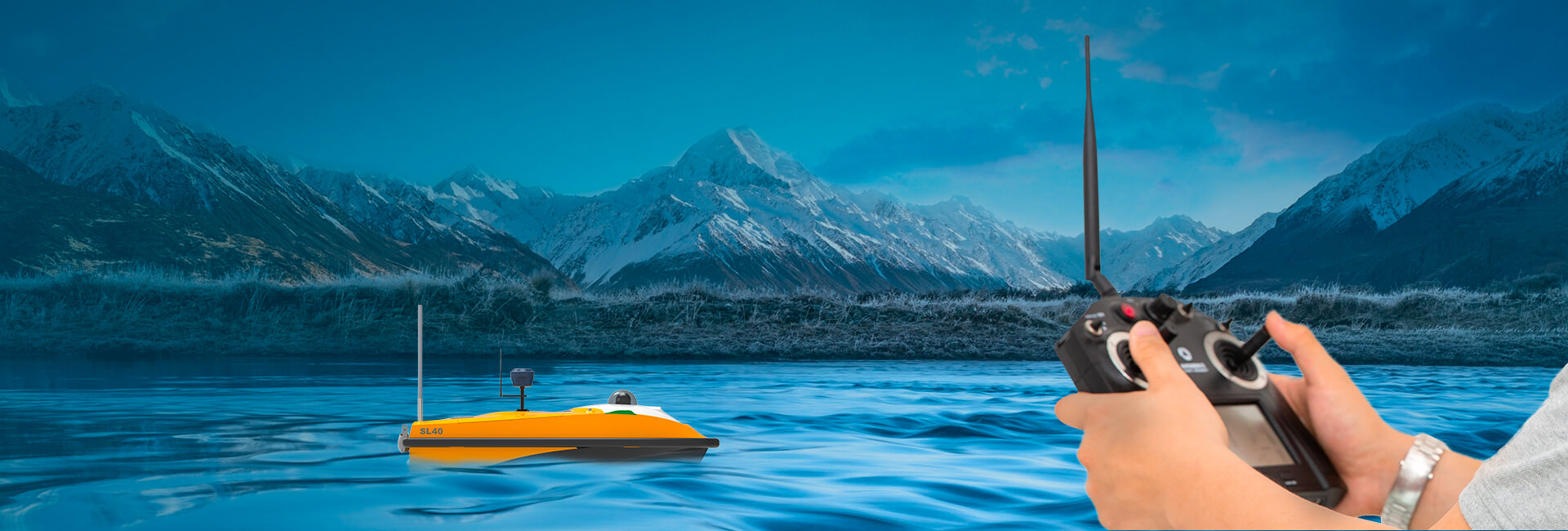

SL40Y 03 planning 13 e1553847041397

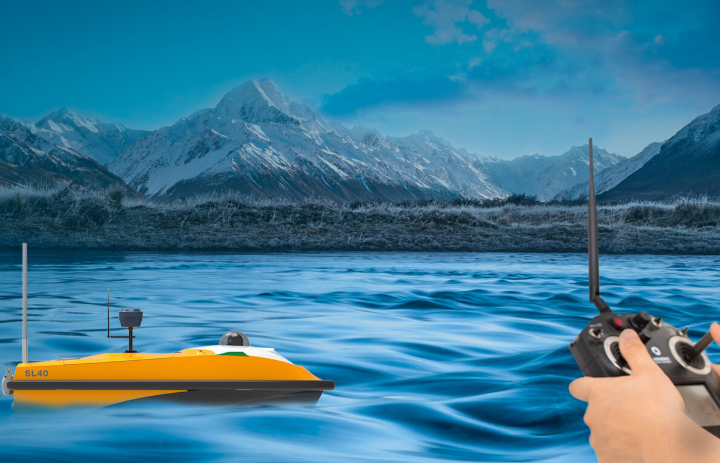

Flexible operation with remote controller

The USV is operated by the remote controller, user can enjoy a higher level of flexibility and safety in harsh working environment.

SL40Y 04 speed 17 3 e1553847624112

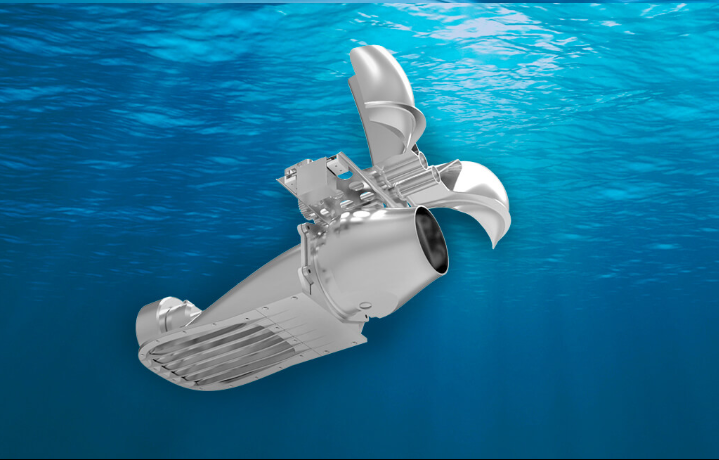

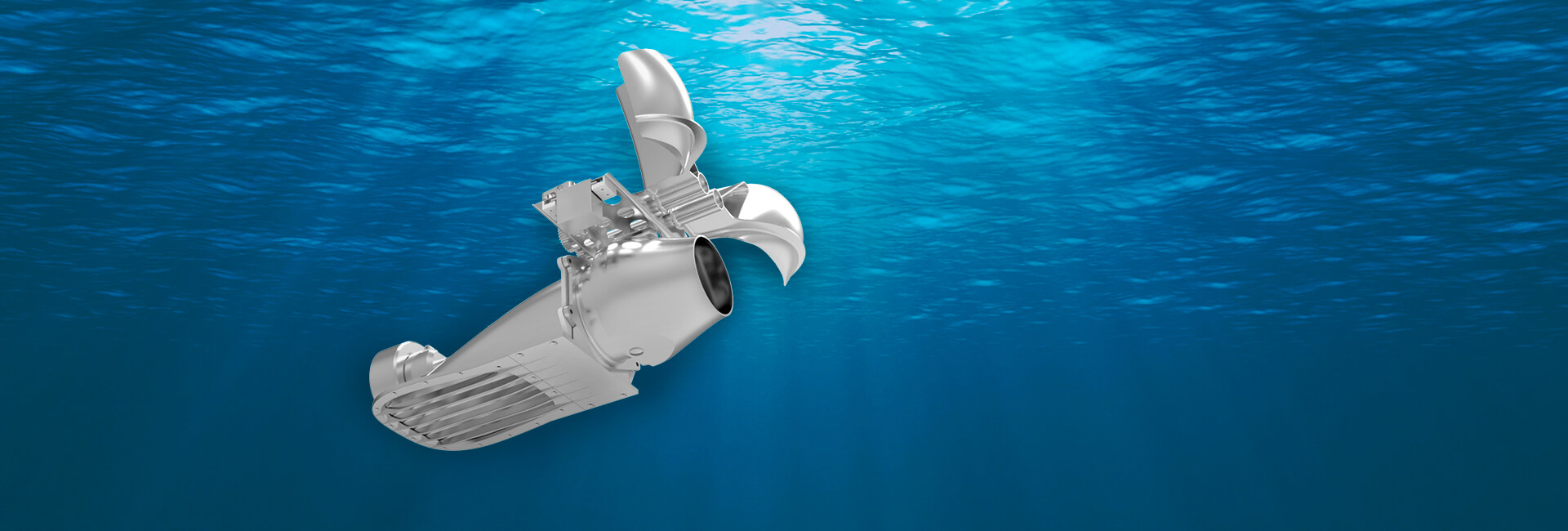

High speed & tangle free

The innovative waterjet propeller allows the USV to sail up to 6m/s and effectively avoid being entangled in water plants or rubbishes.

SL40Y 05 sailing 16 1 e1553847850194

Stable sailing

The trimaran hull design highly improve the sailing stability in high speed.

Specification

Hull Material Fiberglass composite with Kevlar&carbon fiber
Dimension (L)165 cm *(W)70 cm *(H)40 cm
Weight 42 kg
Payload 15 kg
Draft 15 cm
Propulsion Electric water-jet propeller
Collision Avoidance Millimeter Wave Radar
Communication Range Remote Control: 1 km
Max. Speed  10 knots (5 m/s)
Battery Life  8 hours @1.5 m/s

Application Case

  • 5 e1561715156157
    USV Assist In Pollution Remediation of Yangtze River
  •  e1584934737863
    SL40 Deploys Multiple Sensors to Conduct Underwater and Above-water Survey
  • SL40 USV surveying at night
    SL40 & SL20 USV Measure River Velocity With ADCP in Jiangmen

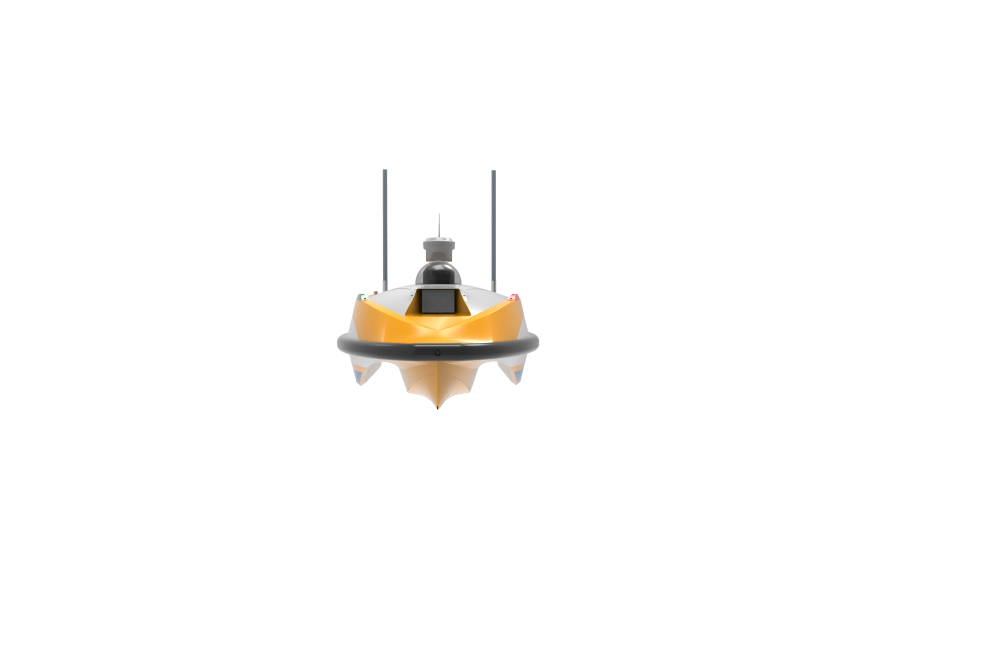

  • .526 e1551691584539

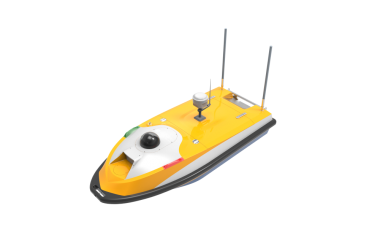

  • .527 e1551753973219

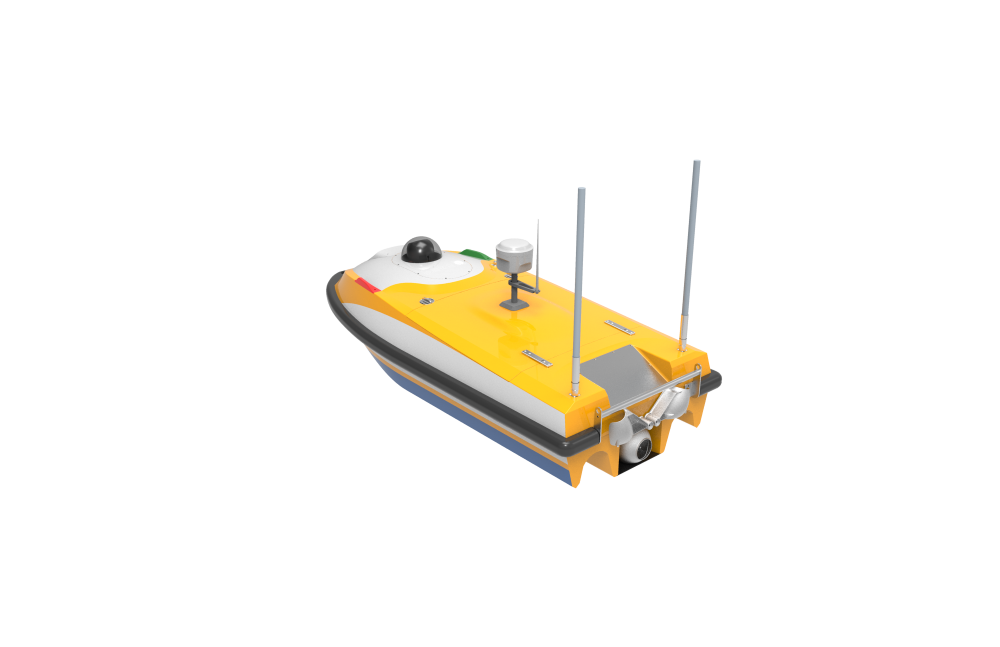

  • .529 e1551691613950

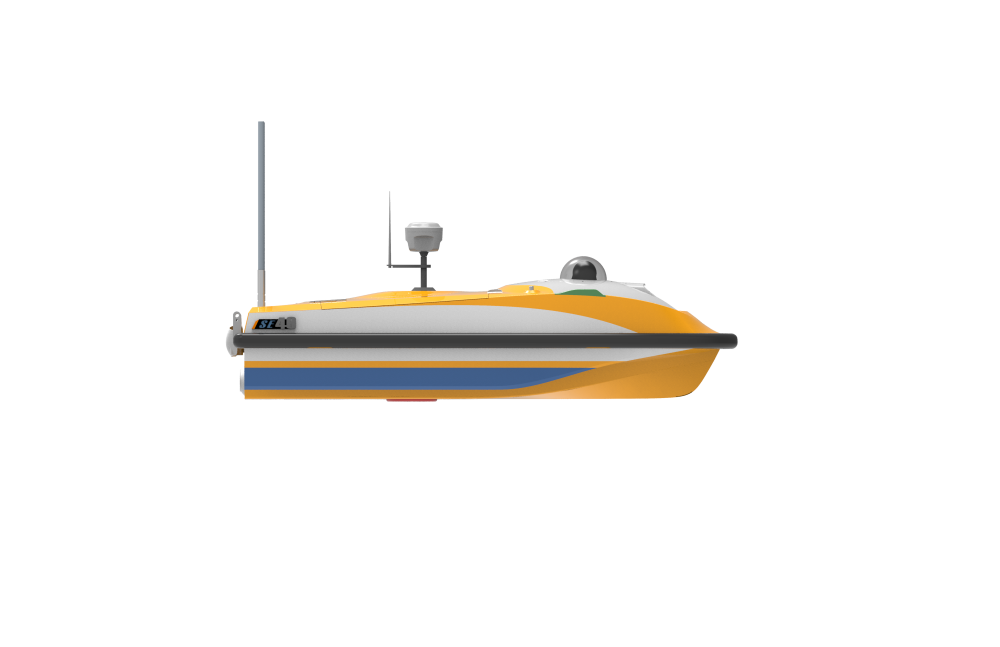

  • .532 e1551691625183

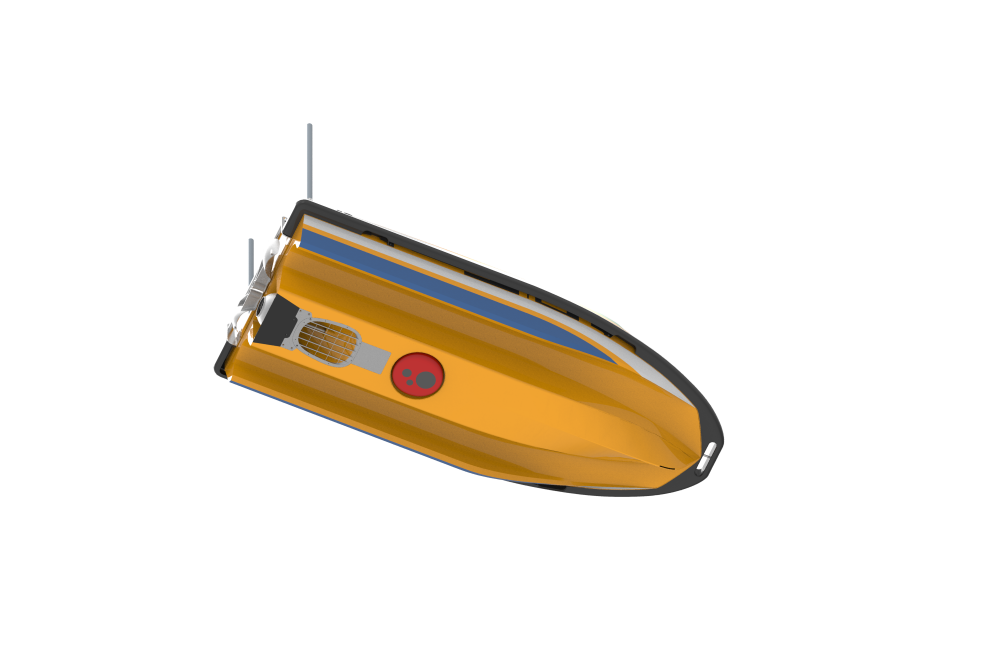

  • .533 e1551691636148

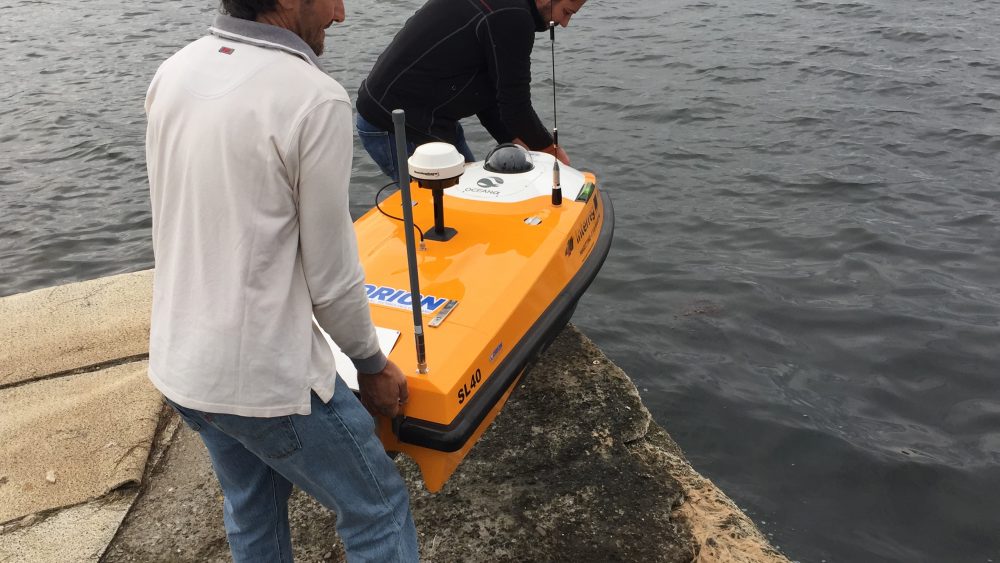

  • 微信图片 20181204173514 e1551691647192
